CU/XLPE/AWA/LSZH BS 6724 (CPR Sınıfı Cca)
CU/XLPE/AWA/LSZH BS 6724 (CPR Sınıfı Cca)
0,6/1 kV XLPE izoleli, düşük duman yoğunluklu halojensiz, aluminyum tel zırhlı, tek damarlı bakır iletkenli kablolar.
Devamını okuCU/XLPE/AWA/LSZH 1X50 mm2
Nexans referansı 10546190 - Ülke referansı TR
- Paketleme: Makara (1000m)
- İletken kesiti: 50 mm²
- Dış çap: 16 mm
- Yaklaşık ağırlık: 600 kg/km
- Akım taşıma kapasitesi (havada) 30°C / yatay serilim: 288 A
- Klipslenmiş olarak akım taşıma kapasitesi: 220 A
- İletken DC Direnci 20 °C (maks.): 0,387 Ohm/km
- İzin verilen iletken kısa devre akımı 1 s: 7,2 kA
CU/XLPE/AWA/LSZH 1X70 mm2
Nexans referansı 10546191 - Ülke referansı TR
- Paketleme: Makara (1000m)
- İletken kesiti: 70 mm²
- Dış çap: 19 mm
- Yaklaşık ağırlık: 900 kg/km
- Akım taşıma kapasitesi (havada) 30°C / yatay serilim: 358 A
- Klipslenmiş olarak akım taşıma kapasitesi: 277 A
- İletken DC Direnci 20 °C (maks.): 0,268 Ohm/km
- İzin verilen iletken kısa devre akımı 1 s: 10 kA
CU/XLPE/AWA/LSZH 1X95 mm2
Nexans referansı 10546192 - Ülke referansı TR
- Paketleme: Makara (1000m)
- İletken kesiti: 95 mm²
- Dış çap: 20 mm
- Yaklaşık ağırlık: 1200 kg/km
- Akım taşıma kapasitesi (havada) 30°C / yatay serilim: 425 A
- Klipslenmiş olarak akım taşıma kapasitesi: 333 A
- İletken DC Direnci 20 °C (maks.): 0,193 Ohm/km
- İzin verilen iletken kısa devre akımı 1 s: 13,6 kA
CU/XLPE/AWA/LSZH 1X120 mm2
Nexans referansı 10546193 - Ülke referansı TR
- Paketleme: Makara (1000m)
- İletken kesiti: 120 mm²
- Dış çap: 22 mm
- Yaklaşık ağırlık: 1400 kg/km
- Akım taşıma kapasitesi (havada) 30°C / yatay serilim: 485 A
- Klipslenmiş olarak akım taşıma kapasitesi: 383 A
- İletken DC Direnci 20 °C (maks.): 0,153 Ohm/km
- İzin verilen iletken kısa devre akımı 1 s: 17,2 kA
CU/XLPE/AWA/LSZH 1X150 mm2
Nexans referansı 10546194 - Ülke referansı TR
- Paketleme: Makara (1000m)
- İletken kesiti: 150 mm²
- Dış çap: 25 mm
- Yaklaşık ağırlık: 1800 kg/km
- Akım taşıma kapasitesi (havada) 30°C / yatay serilim: 549 A
- Klipslenmiş olarak akım taşıma kapasitesi: 437 A
- İletken DC Direnci 20 °C (maks.): 0,124 Ohm/km
- İzin verilen iletken kısa devre akımı 1 s: 21,4 kA
Açıklama
Açıklama
Standartlar
-
ProductBS 6724; IEC 60502
Uygulama Alanı
Oteller,okullar,yüksek binalar,hastaneler,bilgi işlem merkezleri ve insanların yoğun olarak bulunduğu iş merkezleri ile yangına hassas bölgeler.

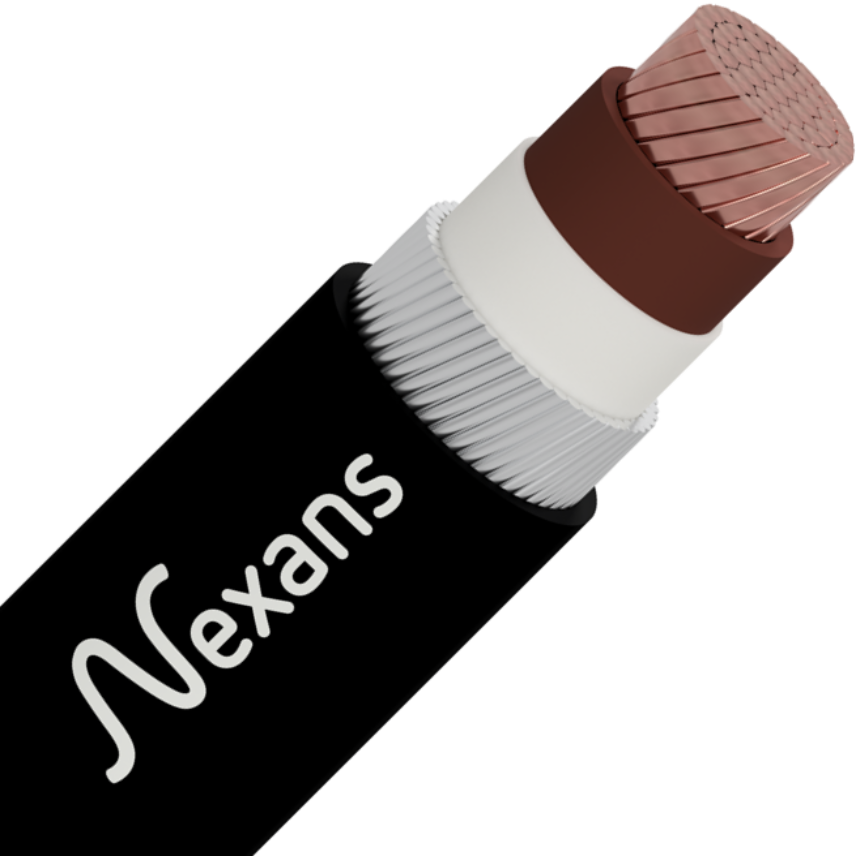

Kablo Yapısı
- İletken:Bakır
- İzole:XLPE
- İç kılıf:LSZH
- Zırh:Aluminyum tel
- Dış kılıf:LSZH (Düşük Duman Yoğunluklu Halojensiz)
Özellikleri
Özellikleri
Yapısal karakteristikler
Yapısal karakteristikler
İletken şekli
Yuvarlak örgülü (Rm)
İletken malzemesi
Bakır
İzole malzemesi
XLPE (Çapraz bağlı polietilen)
Damar renkleri
Kahve
Zırh tipi
Aluminyum Tel
Dış kılıf
LSZH
Dış kılıf rengi
Siyah
Halojensiz
IEC 60754-1
İletken esnekliği
Örgülü sınıf 2
Boyutsal karakteristikler
Boyutsal karakteristikler
Damar sayısı
1
Kullanım karakteristikleri
Kullanım karakteristikleri
Kısa devre iletken sıcaklığı (maks.)
250 °C
İşletme ortam sıcaklığı
-20 ... 60 °C
Döşeme anındaki bükme çapı (min.)
15 (xD)
Alev geciktirme
IEC 60332-3 Cat. C
Duman yoğunluğu
IEC 61034
Koroziflik
Az (IEC 60754-2)
Kullanım sırasında maksimum iletken sıcaklığı
90 °C
UV dayanım
Evet
Kaynaklar
Kaynaklar
Current capacity table XLPE insulation single core three phase
XLPE or EPR insulation, three loaded conductors/copper or aluminium –
Conductor temperature: 90 °C, ambient temperature: 30 °C in air, 20 °C in ground
| İletken kesiti | A1 Insulated conductors in conduit in a thermally insulated wall | B1 Insulated conductors in conduit on a wooden wall | C Single-core or multi-core cable on a wooden wall | D1 Single-core or Multi-core cable in ducts in the ground | D2 Single-core or Multi-core cables designed to be buried directly in the ground | F Single-core flat cables, touching in free air | F Single-core trefoil cables, touching in free air | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
İletken kesiti 1.5 |
A1 Insulated conductors in conduit in a thermally insulated wall
17.0 |
B1 Insulated conductors in conduit on a wooden wall
0.0 |
C Single-core or multi-core cable on a wooden wall
20.0 |
D1 Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
22.0 |
F Single-core flat cables, touching in free air
0.0 |
F Single-core trefoil cables, touching in free air
21.0 |
mm² 0.0 |
Cu 23.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 2.5 |
A1 Insulated conductors in conduit in a thermally insulated wall
23.0 |
B1 Insulated conductors in conduit on a wooden wall
19.0 |
C Single-core or multi-core cable on a wooden wall
28.0 |
D1 Single-core or Multi-core cable in ducts in the ground
22.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
30.0 |
F Single-core flat cables, touching in free air
24.0 |
F Single-core trefoil cables, touching in free air
28.0 |
mm² 22.0 |
Cu 30.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 4.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
31.0 |
B1 Insulated conductors in conduit on a wooden wall
25.0 |
C Single-core or multi-core cable on a wooden wall
37.0 |
D1 Single-core or Multi-core cable in ducts in the ground
29.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
40.0 |
F Single-core flat cables, touching in free air
32.0 |
F Single-core trefoil cables, touching in free air
36.0 |
mm² 28.0 |
Cu 39.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 6.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
40.0 |
B1 Insulated conductors in conduit on a wooden wall
32.0 |
C Single-core or multi-core cable on a wooden wall
48.0 |
D1 Single-core or Multi-core cable in ducts in the ground
38.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
52.0 |
F Single-core flat cables, touching in free air
41.0 |
F Single-core trefoil cables, touching in free air
44.0 |
mm² 35.0 |
Cu 49.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 10.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
54.0 |
B1 Insulated conductors in conduit on a wooden wall
44.0 |
C Single-core or multi-core cable on a wooden wall
66.0 |
D1 Single-core or Multi-core cable in ducts in the ground
52.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
71.0 |
F Single-core flat cables, touching in free air
57.0 |
F Single-core trefoil cables, touching in free air
58.0 |
mm² 46.0 |
Cu 65.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 16.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
73.0 |
B1 Insulated conductors in conduit on a wooden wall
58.0 |
C Single-core or multi-core cable on a wooden wall
88.0 |
D1 Single-core or Multi-core cable in ducts in the ground
71.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
96.0 |
F Single-core flat cables, touching in free air
76.0 |
F Single-core trefoil cables, touching in free air
75.0 |
mm² 59.0 |
Cu 84.0 |
Al 64.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
İletken kesiti 25.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
95.0 |
B1 Insulated conductors in conduit on a wooden wall
76.0 |
C Single-core or multi-core cable on a wooden wall
117.0 |
D1 Single-core or Multi-core cable in ducts in the ground
93.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
119.0 |
F Single-core flat cables, touching in free air
90.0 |
F Single-core trefoil cables, touching in free air
96.0 |
mm² 75.0 |
Cu 107.0 |
Al 82.0 |
Cu 141.0 |
Al 107.0 |
Cu 135.0 |
Al 103.0 |
İletken kesiti 35.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
117.0 |
B1 Insulated conductors in conduit on a wooden wall
94.0 |
C Single-core or multi-core cable on a wooden wall
144.0 |
D1 Single-core or Multi-core cable in ducts in the ground
116.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
147.0 |
F Single-core flat cables, touching in free air
112.0 |
F Single-core trefoil cables, touching in free air
115.0 |
mm² 90.0 |
Cu 129.0 |
Al 98.0 |
Cu 176.0 |
Al 135.0 |
Cu 169.0 |
Al 129.0 |
İletken kesiti 50.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
141.0 |
B1 Insulated conductors in conduit on a wooden wall
113.0 |
C Single-core or multi-core cable on a wooden wall
175.0 |
D1 Single-core or Multi-core cable in ducts in the ground
140.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
179.0 |
F Single-core flat cables, touching in free air
136.0 |
F Single-core trefoil cables, touching in free air
135.0 |
mm² 106.0 |
Cu 153.0 |
Al 117.0 |
Cu 216.0 |
Al 165.0 |
Cu 207.0 |
Al 159.0 |
İletken kesiti 70.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
179.0 |
B1 Insulated conductors in conduit on a wooden wall
142.0 |
C Single-core or multi-core cable on a wooden wall
222.0 |
D1 Single-core or Multi-core cable in ducts in the ground
179.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
229.0 |
F Single-core flat cables, touching in free air
174.0 |
F Single-core trefoil cables, touching in free air
167.0 |
mm² 130.0 |
Cu 188.0 |
Al 144.0 |
Cu 279.0 |
Al 215.0 |
Cu 268.0 |
Al 206.0 |
İletken kesiti 95.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
216.0 |
B1 Insulated conductors in conduit on a wooden wall
171.0 |
C Single-core or multi-core cable on a wooden wall
269.0 |
D1 Single-core or Multi-core cable in ducts in the ground
217.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
278.0 |
F Single-core flat cables, touching in free air
211.0 |
F Single-core trefoil cables, touching in free air
197.0 |
mm² 154.0 |
Cu 226.0 |
Al 172.0 |
Cu 342.0 |
Al 264.0 |
Cu 328.0 |
Al 253.0 |
İletken kesiti 120.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
249.0 |
B1 Insulated conductors in conduit on a wooden wall
197.0 |
C Single-core or multi-core cable on a wooden wall
312.0 |
D1 Single-core or Multi-core cable in ducts in the ground
251.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
322.0 |
F Single-core flat cables, touching in free air
245.0 |
F Single-core trefoil cables, touching in free air
223.0 |
mm² 174.0 |
Cu 257.0 |
Al 197.0 |
Cu 400.0 |
Al 308.0 |
Cu 383.0 |
Al 296.0 |
İletken kesiti 150.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
285.0 |
B1 Insulated conductors in conduit on a wooden wall
226.0 |
C Single-core or multi-core cable on a wooden wall
342.0 |
D1 Single-core or Multi-core cable in ducts in the ground
267.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
371.0 |
F Single-core flat cables, touching in free air
283.0 |
F Single-core trefoil cables, touching in free air
251.0 |
mm² 197.0 |
Cu 287.0 |
Al 220.0 |
Cu 464.0 |
Al 358.0 |
Cu 444.0 |
Al 343.0 |
İletken kesiti 185.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
324.0 |
B1 Insulated conductors in conduit on a wooden wall
256.0 |
C Single-core or multi-core cable on a wooden wall
384.0 |
D1 Single-core or Multi-core cable in ducts in the ground
300.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
424.0 |
F Single-core flat cables, touching in free air
323.0 |
F Single-core trefoil cables, touching in free air
281.0 |
mm² 220.0 |
Cu 324.0 |
Al 250.0 |
Cu 533.0 |
Al 413.0 |
Cu 510.0 |
Al 395.0 |
İletken kesiti 240.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
380.0 |
B1 Insulated conductors in conduit on a wooden wall
300.0 |
C Single-core or multi-core cable on a wooden wall
450.0 |
D1 Single-core or Multi-core cable in ducts in the ground
351.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
500.0 |
F Single-core flat cables, touching in free air
382.0 |
F Single-core trefoil cables, touching in free air
324.0 |
mm² 253.0 |
Cu 375.0 |
Al 290.0 |
Cu 634.0 |
Al 492.0 |
Cu 607.0 |
Al 471.0 |
İletken kesiti 300.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
435.0 |
B1 Insulated conductors in conduit on a wooden wall
344.0 |
C Single-core or multi-core cable on a wooden wall
514.0 |
D1 Single-core or Multi-core cable in ducts in the ground
402.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
576.0 |
F Single-core flat cables, touching in free air
440.0 |
F Single-core trefoil cables, touching in free air
365.0 |
mm² 286.0 |
Cu 419.0 |
Al 326.0 |
Cu 736.0 |
Al 571.0 |
Cu 703.0 |
Al 547.0 |
İletken kesiti 400.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
0.0 |
B1 Insulated conductors in conduit on a wooden wall
0.0 |
C Single-core or multi-core cable on a wooden wall
0.0 |
D1 Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
0.0 |
F Single-core flat cables, touching in free air
0.0 |
F Single-core trefoil cables, touching in free air
0.0 |
mm² 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 868.0 |
Al 694.0 |
Cu 823.0 |
Al 663.0 |
İletken kesiti 500.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
0.0 |
B1 Insulated conductors in conduit on a wooden wall
0.0 |
C Single-core or multi-core cable on a wooden wall
0.0 |
D1 Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
0.0 |
F Single-core flat cables, touching in free air
0.0 |
F Single-core trefoil cables, touching in free air
0.0 |
mm² 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 998.0 |
Al 806.0 |
Cu 946.0 |
Al 770.0 |
İletken kesiti 630.0 |
A1 Insulated conductors in conduit in a thermally insulated wall
0.0 |
B1 Insulated conductors in conduit on a wooden wall
0.0 |
C Single-core or multi-core cable on a wooden wall
0.0 |
D1 Single-core or Multi-core cable in ducts in the ground
0.0 |
D2 Single-core or Multi-core cables designed to be buried directly in the ground
0.0 |
F Single-core flat cables, touching in free air
0.0 |
F Single-core trefoil cables, touching in free air
0.0 |
mm² 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 1151.0 |
Al 942.0 |
Cu 1088.0 |
Al 899.0 |
Web sitelerimiz
Ürünlerimizi ve çözümlerimizi bulmak için ülkenizi seçin
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
