F/UTP Category 6 PVC Kablo (CPR Sınıfı Eca)

Application

Nexans F/UTP Category 6 cables are the standard 250MHz offering from Nexans. Manufactured in accordance with TIA/EIA 568-C.2, EN 50173-1, ISO/IEC 11801 and IEC 61156-5 requirements, the F/UTP cable is the best choice to support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, … The Cat 6 F/UTP cables are suitable for basic voice and data installations up to 250 MHz.

Performance

Nexans Category 6 cables are compliant with the requirements of the TIA/EIA 568-C.2, EN 50173-1, ISO/IEC 11801 and IEC 61156-5. Used with Cat 6 connectivity, these cables are compliant with Class E link requirements as described in EN 50173 Edition 2 and ISO 11801.

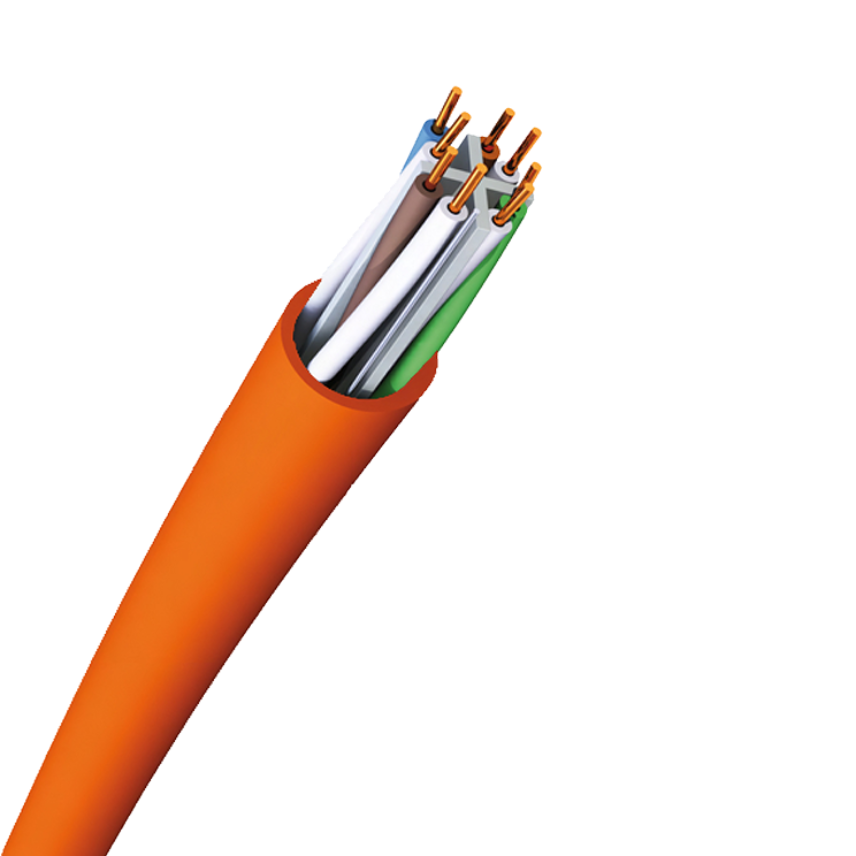

Construction

1. Conductor: Bare copper

2. Insulation: Solid Polyethylene

Two insulated conductors are twisted to form a pair

Pairs are helically stranded to form a cable.

3. Core covering: Polyester tape

4. Screen: Aluminium/Polyester tape with tinned copper drain wire

5. Outer Jacket: PVC

Features

• Central cross for improved geometry and performance
• Central cross member reduces risk of crushing or kinking
• Compact design for minimum volume in ducts or trails.
• PVC sheath
• Design for easy and quick installation
• Solid 23 AWG cable
• RoHS EC Directive 2002/95/EC compliant
• Supports Gigabit Ethernet
• Complies to latest Cat 6 standards
