U/UTP Category 6 PVC Data Kablosu (CPR Sınıfı Eca)

Application

Nexans U/UTP Category 6 cables are the mid-range 250MHz offering from Nexans. Manufactured in accordance with ISO IEC 61156-5 requirements, the U/UTP cable is the best choice to support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, … The Cat 6 U/UTP cables are suitable for basic voice and data installations up to 250 MHz.

Performance

Nexans Category 6 cables are compliant with the requirements of EN 50288 and ISO IEC 61156-5 standards. Used with Cat 6 connectivity, these cables are compliant with Class E link requirements as described in EN 50173 Edition 2 and ISO 11801 Edition 2 standards(2002).

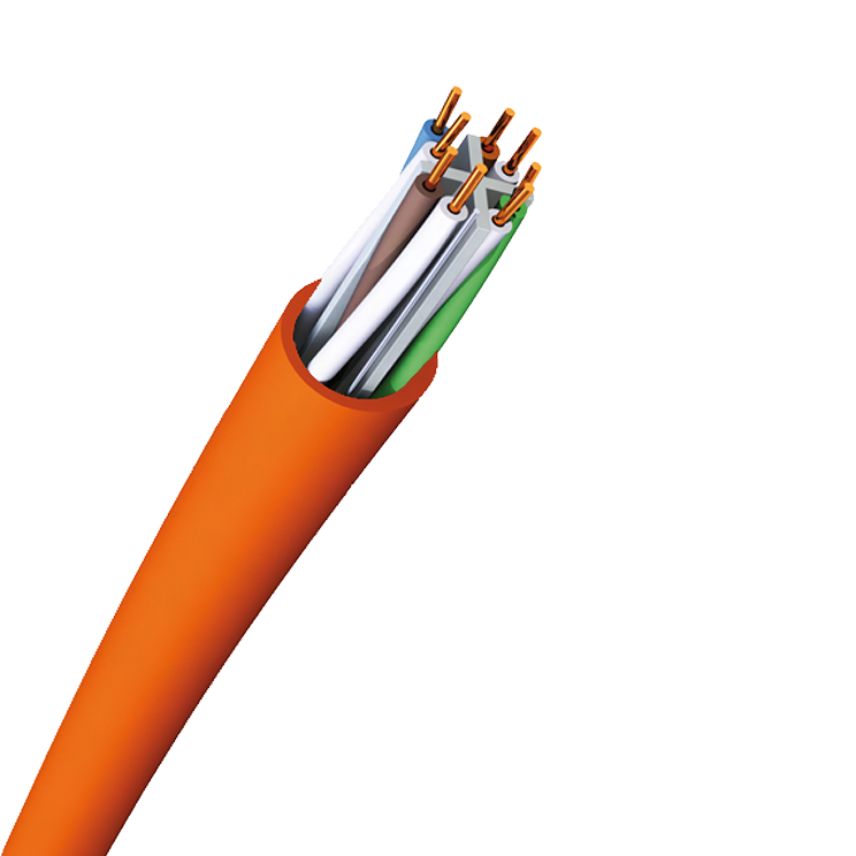

Construction

1. Conductor: Bare copper

2. Insulation: Solid Polyethylene

Two insulated conductors are twisted to form a pair

Pairs are helically stranded to form a cable.

3. Outer Jacket: PVC

Features

• Central cross for improved geometry and performance
• Central cross member reduces risk of crushing or kinking
• Compact design for minimum volume in ducts or trails.
• PVC sheath
• Design for easy and quick installation
• Solid 23 AWG cable
• RoHS EC Directive 2011/65/EU compliant
