CU/XLPE/LSZH 0.6/1 kV - Dca
CU/XLPE/LSZH 0.6/1 kV - Dca
0.6/1 kV XLPE insulated flame retardant multi-core cables with copper conductor.
Read moreCU/XLPE/LSZH 2x2.5 mm2
Nexans ref. 10574743 - Country ref. TR
- Approximate weight: 165 kg/km
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 10.5 mm
- Number of cores: 2
CU/XLPE/LSZH 2x35 mm2
Nexans ref. 10574747 - Country ref. TR
- Approximate weight: 1000 kg/km
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 20.2 mm
- Number of cores: 2
CU/XLPE/LSZH 2x4 mm2
Nexans ref. 10574745 - Country ref. TR
- Approximate weight: 210 kg/km
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 11.5 mm
- Number of cores: 2
CU/XLPE/LSZH 3G16 mm2
Nexans ref. 10574813 - Country ref. TR
- Approximate weight: 660 kg/km
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 16.4 mm
- Number of cores: 3
CU/XLPE/LSZH 3G2.5 mm2
Nexans ref. 10574741 - Country ref. TR
- Approximate weight: 185 kg/km
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 10.6 mm
- Number of cores: 3
CU/XLPE/LSZH 3G4 mm2
Nexans ref. 10574812 - Country ref. TR
- Approximate weight: 240 kg/km
- Conductor cross-section: 4 mm²
- Nominal outer diameter: - mm
- Number of cores: 3
CU/XLPE/LSZH 3x120+1G70 mm2
Nexans ref. 10574795 - Country ref. TR
- Approximate weight: 4820 kg/km
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 39.4 mm
- Number of cores: 4
CU/XLPE/LSZH 3x120+2G70 mm2
Nexans ref. 10574800 - Country ref. TR
- Approximate weight: 5740 kg/km
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 42.7 mm
- Number of cores: 5
CU/XLPE/LSZH 3x150+1G95 mm2
Nexans ref. 10574796 - Country ref. TR
- Approximate weight: 6000 kg/km
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 43.1 mm
- Number of cores: 4
CU/XLPE/LSZH 3x150+2G95 mm2
Nexans ref. 10574801 - Country ref. TR
- Approximate weight: 7180 kg/km
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 46.9 mm
- Number of cores: 5
CU/XLPE/LSZH 3x35+1G25 mm2
Nexans ref. 10574793 - Country ref. TR
- Approximate weight: 1570 kg/km
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 23.6 mm
- Number of cores: 4
CU/XLPE/LSZH 3x35+2G25 mm2
Nexans ref. 10574798 - Country ref. TR
- Approximate weight: 1890 kg/km
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 25.5 mm
- Number of cores: 5
CU/XLPE/LSZH 3x70+1G35 mm2
Nexans ref. 10574794 - Country ref. TR
- Approximate weight: 2780 kg/km
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 30.6 mm
- Number of cores: 4
CU/XLPE/LSZH 3x70+2G35 mm2
Nexans ref. 10574799 - Country ref. TR
- Approximate weight: 3330 kg/km
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 33.7 mm
- Number of cores: 5
CU/XLPE/LSZH 4G16 mm2
Nexans ref. 10574791 - Country ref. TR
- Approximate weight: 830 kg/km
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 17.9 mm
- Number of cores: 4
CU/XLPE/LSZH 4G25 mm2
Nexans ref. 10574792 - Country ref. TR
- Approximate weight: 1250 kg/km
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 21.4 mm
- Number of cores: 4
CU/XLPE/LSZH 4G6 mm2
Nexans ref. 10574749 - Country ref. TR
- Approximate weight: 420 kg/km
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 14.6 mm
- Number of cores: 4
CU/XLPE/LSZH 5G25 mm2
Nexans ref. 10574803 - Country ref. TR
- Approximate weight: 1530 kg/km
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 23.4 mm
- Number of cores: 5
CU/XLPE/LSZH 5G6 mm2
Nexans ref. 10576600 - Country ref. TR
- Approximate weight: 480 kg/km
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 17.6 mm
- Number of cores: 5
Description
Description
Standards
-
ProductEN 50575; IEC 60502
-
TestIEC 60332-3 Cat.A; IEC 60754; IEC 61034
Application
Used in energy networks in hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, business centers where there is need reaction to fire.

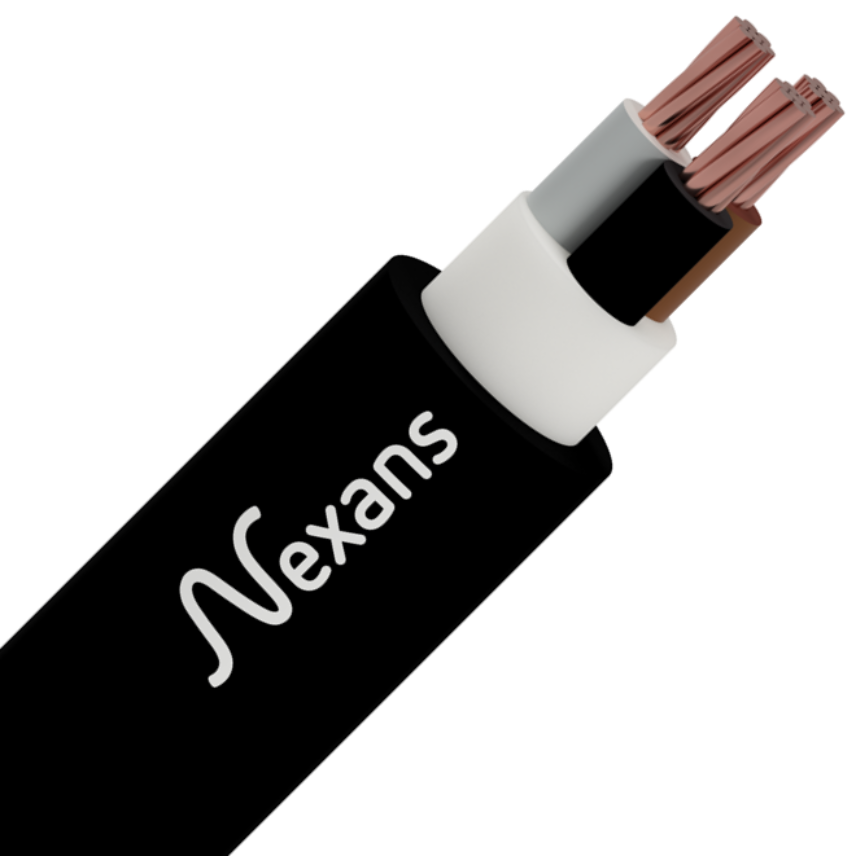

Construction
1.Conductor : Copper
2.Insulatıon : XLPE
3.Outer Sheath : LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
