CU/XLPE/LSZH/SWA/LSZH 0.6/1 kV - Dca

CU/XLPE/LSZH/SWA/LSZH 0.6/1 kV - Dca

CU/XLPE/LSZH/SWA/LSZH 0.6/1 kV - Dca

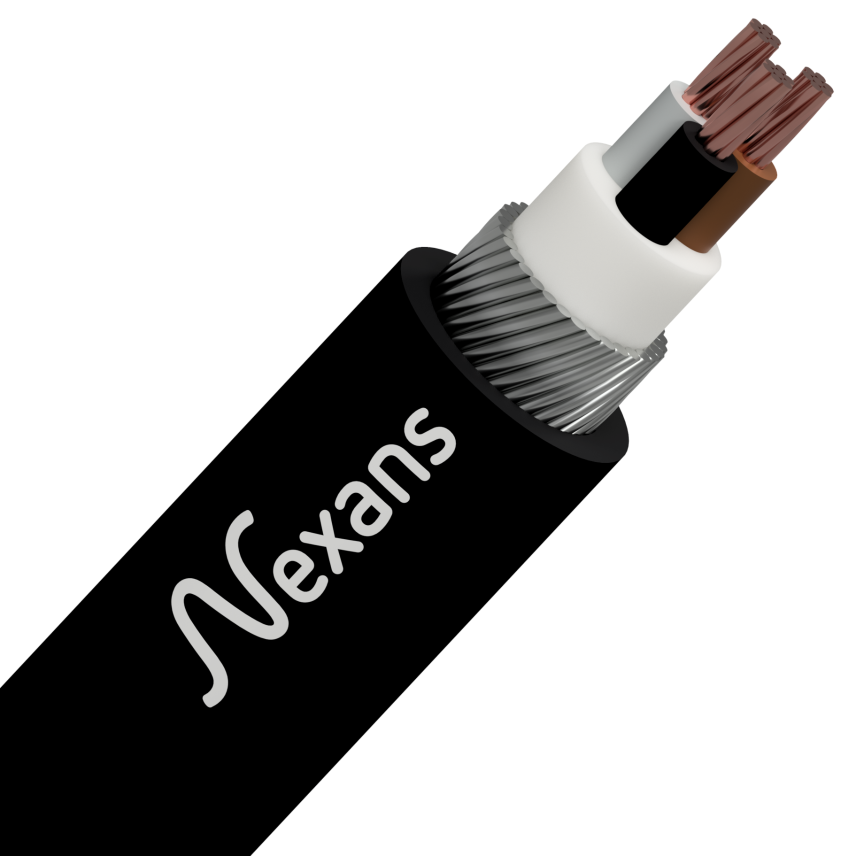

0.6/1 kV XLPE insulated, steel wire armoured, three core LSZH sheathed cables with copper conductor

Read more
Download all documents
Contact us

Products

Actions

  • products

CU/XLPE/LSZH/SWA/LSZH 4G2.5 mm2

Nexans ref. 10580504 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 400 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 14.0 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 30 A
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 3G2.5 mm2

Nexans ref. 10580483 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 360 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 13.3 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 30 A
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 12x2.5 mm2

Nexans ref. 10580487 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Black cores with white numbers
  • Approximate weight: 920 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 20.9 mm
  • Number of cores: 12
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 16 A
  • Perm. current rating in air 30°C - flat formation: 9 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 5x2.5 mm2

Nexans ref. 10580488 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Black cores with white numbers
  • Approximate weight: 480 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 15.4 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 32 A
  • Perm. current rating in air 30°C - flat formation: 9 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 7x2.5 mm2

Nexans ref. 10580489 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Black cores with white numbers
  • Approximate weight: 650 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 17.2 mm
  • Number of cores: 7
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 21 A
  • Perm. current rating in air 30°C - flat formation: 9 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 5G2.5 mm2

Nexans ref. 10580500 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 450 kg/km
  • Conductor cross-section: 2.5 mm²
  • Minimum outer diameter: 14.9 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 30 A
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Permissible short circuit current conductor 1s: 0.4 kA



CU/XLPE/LSZH/SWA/LSZH 4G4 mm2

Nexans ref. 10580506 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 490 kg/km
  • Conductor cross-section: 4 mm²
  • Minimum outer diameter: 15.1 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 36 A
  • Perm. current rating in air 30°C - flat formation: 39 A
  • Permissible short circuit current conductor 1s: 0.6 kA



CU/XLPE/LSZH/SWA/LSZH 3G4 mm2

Nexans ref. 10580484 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 430 kg/km
  • Conductor cross-section: 4 mm²
  • Minimum outer diameter: 14.2 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 39 A
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Permissible short circuit current conductor 1s: 0.6 kA



CU/XLPE/LSZH/SWA/LSZH 5G4 mm2

Nexans ref. 10580496 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 640 kg/km
  • Conductor cross-section: 4 mm²
  • Minimum outer diameter: 16.7 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 39 A
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Permissible short circuit current conductor 1s: 0.6 kA



CU/XLPE/LSZH/SWA/LSZH 4G6 mm2

Nexans ref. 10580507 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 680 kg/km
  • Conductor cross-section: 6 mm²
  • Minimum outer diameter: 16.9 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 44 A
  • Perm. current rating in air 30°C - flat formation: 49 A
  • Permissible short circuit current conductor 1s: 0.9 kA



CU/XLPE/LSZH/SWA/LSZH 3G6 mm2

Nexans ref. 10580486 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 520 kg/km
  • Conductor cross-section: 6 mm²
  • Minimum outer diameter: 15.2 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 49 A
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Permissible short circuit current conductor 1s: 0.9 kA



CU/XLPE/LSZH/SWA/LSZH 5G6 mm2

Nexans ref. 10580499 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 790 kg/km
  • Conductor cross-section: 6 mm²
  • Minimum outer diameter: 18.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 49 A
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Permissible short circuit current conductor 1s: 0.9 kA



CU/XLPE/LSZH/SWA/LSZH 4G10 mm2

Nexans ref. 10580501 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 950 kg/km
  • Conductor cross-section: 10 mm²
  • Minimum outer diameter: 19.6 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 65 A
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Permissible short circuit current conductor 1s: 1.4 kA



CU/XLPE/LSZH/SWA/LSZH 5G10 mm2

Nexans ref. 10580493 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 1100 kg/km
  • Conductor cross-section: 10 mm²
  • Minimum outer diameter: 21.0 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 65 A
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Permissible short circuit current conductor 1s: 1.4 kA



CU/XLPE/LSZH/SWA/LSZH 4G16 mm2

Nexans ref. 10580503 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 1360 kg/km
  • Conductor cross-section: 16 mm²
  • Minimum outer diameter: 22.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 84 A
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Permissible short circuit current conductor 1s: 2.3 kA



CU/XLPE/LSZH/SWA/LSZH 3G16 mm2

Nexans ref. 10580472 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 1050 kg/km
  • Conductor cross-section: 16 mm²
  • Minimum outer diameter: 20.3 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 84 A
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Permissible short circuit current conductor 1s: 2.3 kA



CU/XLPE/LSZH/SWA/LSZH 5G16 mm2

Nexans ref. 10580494 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 1580 kg/km
  • Conductor cross-section: 16 mm²
  • Minimum outer diameter: 24.2 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 84 A
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Permissible short circuit current conductor 1s: 2.3 kA



CU/XLPE/LSZH/SWA/LSZH 4G25 mm2

Nexans ref. 10580505 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 1870 kg/km
  • Conductor cross-section: 25 mm²
  • Minimum outer diameter: 26.1 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 107 A
  • Perm. current rating in air 30°C - flat formation: 127 A
  • Permissible short circuit current conductor 1s: 3.6 kA



CU/XLPE/LSZH/SWA/LSZH 5G25 mm2

Nexans ref. 10580495 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Approximate weight: 2210 kg/km
  • Conductor cross-section: 25 mm²
  • Minimum outer diameter: 28.1 mm
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 107 A
  • Perm. current rating in air 30°C - flat formation: 127 A
  • Permissible short circuit current conductor 1s: 3.6 kA



CU/XLPE/LSZH/SWA/LSZH 3x35 mm2

Nexans ref. 10580450 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 1930 kg/km
  • Conductor cross-section: 35 mm²
  • Minimum outer diameter: 26.2 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 129 A
  • Perm. current rating in air 30°C - flat formation: 158 A
  • Permissible short circuit current conductor 1s: 5 kA



CU/XLPE/LSZH/SWA/LSZH 4G35 mm2

Nexans ref. 10580485 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 2350 kg/km
  • Conductor cross-section: 35 mm²
  • Minimum outer diameter: 28.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 129 A
  • Perm. current rating in air 30°C - flat formation: 158 A
  • Permissible short circuit current conductor 1s: 5 kA



CU/XLPE/LSZH/SWA/LSZH 4x35 mm2

Nexans ref. 10580458 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 2350 kg/km
  • Conductor cross-section: 35 mm²
  • Minimum outer diameter: 28.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 129 A
  • Perm. current rating in air 30°C - flat formation: 158 A
  • Permissible short circuit current conductor 1s: 5 kA



CU/XLPE/LSZH/SWA/LSZH 3x50 mm2

Nexans ref. 10580449 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 2140 kg/km
  • Conductor cross-section: 50 mm²
  • Minimum outer diameter: 26.4 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 135 A
  • Perm. current rating in air 30°C - flat formation: 153 A
  • Permissible short circuit current conductor 1s: 7.2 kA



CU/XLPE/LSZH/SWA/LSZH 4x50 mm2

Nexans ref. 10580459 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 2720 kg/km
  • Conductor cross-section: 50 mm²
  • Minimum outer diameter: 29.6 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 153 A
  • Perm. current rating in air 30°C - flat formation: 192 A
  • Permissible short circuit current conductor 1s: 7.2 kA



CU/XLPE/LSZH/SWA/LSZH 3x70 mm2

Nexans ref. 10580451 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 3050 kg/km
  • Conductor cross-section: 70 mm²
  • Minimum outer diameter: 30.6 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 167 A
  • Perm. current rating in air 30°C - flat formation: 188 A
  • Permissible short circuit current conductor 1s: 10 kA



CU/XLPE/LSZH/SWA/LSZH 4x70 mm2

Nexans ref. 10580470 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 3890 kg/km
  • Conductor cross-section: 70 mm²
  • Minimum outer diameter: 34.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 188 A
  • Perm. current rating in air 30°C - flat formation: 246 A
  • Permissible short circuit current conductor 1s: 10 kA



CU/XLPE/LSZH/SWA/LSZH 4G70 mm2

Nexans ref. 10582402 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 3890 kg/km
  • Conductor cross-section: 70 mm²
  • Minimum outer diameter: 34.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 188 A
  • Perm. current rating in air 30°C - flat formation: 246 A
  • Permissible short circuit current conductor 1s: 10 kA



CU/XLPE/LSZH/SWA/LSZH 3x95 mm2

Nexans ref. 10580452 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 3940 kg/km
  • Conductor cross-section: 95 mm²
  • Minimum outer diameter: 34.3 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 226 A
  • Perm. current rating in air 30°C - flat formation: 298 A
  • Permissible short circuit current conductor 1s: 13.6 kA



CU/XLPE/LSZH/SWA/LSZH 4x95 mm2

Nexans ref. 10580471 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 5060 kg/km
  • Conductor cross-section: 95 mm²
  • Minimum outer diameter: 39.0 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 226 A
  • Perm. current rating in air 30°C - flat formation: 298 A
  • Permissible short circuit current conductor 1s: 13.6 kA



CU/XLPE/LSZH/SWA/LSZH 3x120 mm2

Nexans ref. 10580444 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 4750 kg/km
  • Conductor cross-section: 120 mm²
  • Minimum outer diameter: 37.6 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 257 A
  • Perm. current rating in air 30°C - flat formation: 346 A
  • Permissible short circuit current conductor 1s: 17.2 kA



CU/XLPE/LSZH/SWA/LSZH 4x120 mm2

Nexans ref. 10580453 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 6450 kg/km
  • Conductor cross-section: 120 mm²
  • Minimum outer diameter: 43.8 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 257 A
  • Perm. current rating in air 30°C - flat formation: 346 A
  • Permissible short circuit current conductor 1s: 17.2 kA



CU/XLPE/LSZH/SWA/LSZH 3x150 mm2

Nexans ref. 10580445 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 6080 kg/km
  • Conductor cross-section: 150 mm²
  • Minimum outer diameter: 42.8 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 287 A
  • Perm. current rating in air 30°C - flat formation: 399 A
  • Permissible short circuit current conductor 1s: 21.4 kA



CU/XLPE/LSZH/SWA/LSZH 4x150 mm2

Nexans ref. 10580456 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 7740 kg/km
  • Conductor cross-section: 150 mm²
  • Minimum outer diameter: 47.9 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 287 A
  • Perm. current rating in air 30°C - flat formation: 399 A
  • Permissible short circuit current conductor 1s: 21.4 kA



CU/XLPE/LSZH/SWA/LSZH 3x185 mm2

Nexans ref. 10580446 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 7330 kg/km
  • Conductor cross-section: 185 mm²
  • Minimum outer diameter: 46.4 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 324 A
  • Perm. current rating in air 30°C - flat formation: 456 A
  • Permissible short circuit current conductor 1s: 26.5 kA



CU/XLPE/LSZH/SWA/LSZH 4x185 mm2

Nexans ref. 10580457 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: -
  • Approximate weight: 9400 kg/km
  • Conductor cross-section: 185 mm²
  • Minimum outer diameter: 52.5 mm
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 324 A
  • Perm. current rating in air 30°C - flat formation: 456 A
  • Permissible short circuit current conductor 1s: 26.5 kA



CU/XLPE/LSZH/SWA/LSZH 3x240 mm2

Nexans ref. 10580447 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 9240 kg/km
  • Conductor cross-section: 240 mm²
  • Minimum outer diameter: 51.5 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 375 A
  • Perm. current rating in air 30°C - flat formation: 538 A
  • Permissible short circuit current conductor 1s: 34.3 kA



CU/XLPE/LSZH/SWA/LSZH 3x300 mm2

Nexans ref. 10580448 - Country ref. TR

  • Packaging: Drum (m)
  • Core identification: Brown, black, grey
  • Approximate weight: 11190 kg/km
  • Conductor cross-section: 300 mm²
  • Minimum outer diameter: 56.5 mm
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating buried 20°C - flat formation: 419 A
  • Perm. current rating in air 30°C - flat formation: 621 A
  • Permissible short circuit current conductor 1s: 42.9 kA



Description

Description

Application

Suitable for installations in energy networks where for safety reasons low smoke halogen free and flame retardant cables are specified. The cable is suitable for installation undergorund, in ducts or in air.

Construction

  1. Conductor:Copper
  2. Insulation:XLPE
  3. Assembling:Inner sheath acting as a filler
  4. Inner sheath:Low smoke, zero halogen (LSZH) Natural colour
  5. Metallic armour:Galvanized steel wires (GSWA)
  6. Outer sheath:LSZH - Black

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper class 2
Conductor shape
Sector-shaped
Insulation
XLPE
Armour type
Galvanized steel wires
Outer sheath
LSZH
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Delivery reel size for 1000m
- cm

Electrical characteristics

Electrical characteristics

DC permissible current rating
- A
Permissible short circuit current screen 1s
- kA
Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-3 Cat. C
Gases corrosivity
IEC 60754-1; IEC 60754-2
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
90 °C
Smoke density
IEC 61034-2 & EN 61034-2

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
