CU/XLPE/LSZH/SWA/LSZH 0.6/1 kV - Cca
CU/XLPE/LSZH/SWA/LSZH 0.6/1 kV - Cca

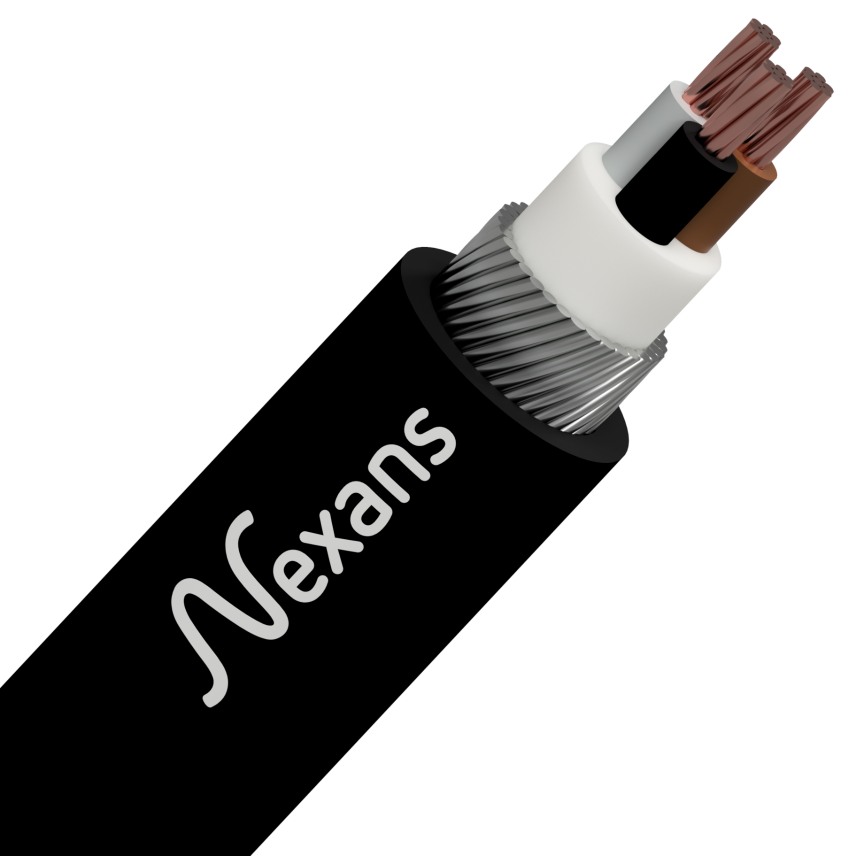

0.6/1 kV XLPE insulated, steel wire armoured, multi core LSZH sheathed cables with copper conductor
Read moreCU/XLPE/LSZH/SWA/LSZH 3G2.5
Nexans ref. 10581910 - Country ref. TR
- Packaging: Drum
- Approximate weight: 420 kg/km
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 15.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Perm. current rating buried 20°C - flat formation: 30 A
- Perm. current rating in air 30°C - flat formation: 32 A
- Permissible short circuit current conductor 1s: 0.4 kA
CU/XLPE/LSZH/SWA/LSZH 10G2.5
Nexans ref. 10581911 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1060 kg/km
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 24.3 mm
- Number of cores: 10
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Perm. current rating buried 20°C - flat formation: 15 A
- Perm. current rating in air 30°C - flat formation: 18 A
- Permissible short circuit current conductor 1s: 0.4 kA
CU/XLPE/LSZH/SWA/LSZH 3G2.5
Nexans ref. 10581914 - Country ref. TR
- Packaging: Drum
- Approximate weight: 420 kg/km
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 15.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Perm. current rating buried 20°C - flat formation: 30 A
- Perm. current rating in air 30°C - flat formation: 32 A
- Permissible short circuit current conductor 1s: 0.4 kA
CU/XLPE/LSZH/SWA/LSZH 4G2.5
Nexans ref. 10586267 - Country ref. TR
- Packaging: Drum
- Approximate weight: 470 kg/km
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 15.2 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Perm. current rating buried 20°C - flat formation: 32 A
- Perm. current rating in air 30°C - flat formation: 30 A
- Permissible short circuit current conductor 1s: 0.4 kA
CU/XLPE/LSZH/SWA/LSZH 4G4
Nexans ref. 10581933 - Country ref. TR
- Packaging: Drum
- Approximate weight: 580 kg/km
- Conductor cross-section: 4 mm²
- Minimum outer diameter: 16.3 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Perm. current rating buried 20°C - flat formation: 39 A
- Perm. current rating in air 30°C - flat formation: 42 A
- Permissible short circuit current conductor 1s: 0.6 kA
CU/XLPE/LSZH/SWA/LSZH 4G2.5
Nexans ref. 10586250 - Country ref. TR
- Packaging: Drum
- Approximate weight: 470 kg/km
- Conductor cross-section: 4 mm²
- Minimum outer diameter: 15.2 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Perm. current rating buried 20°C - flat formation: 30 A
- Perm. current rating in air 30°C - flat formation: 32 A
- Permissible short circuit current conductor 1s: 0.4 kA
CU/XLPE/LSZH/SWA/LSZH 4G6
Nexans ref. 10581932 - Country ref. TR
- Packaging: Drum
- Approximate weight: 810 kg/km
- Conductor cross-section: 6 mm²
- Minimum outer diameter: 19.6 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Perm. current rating buried 20°C - flat formation: 49 A
- Perm. current rating in air 30°C - flat formation: 54 A
- Permissible short circuit current conductor 1s: 0.9 kA
CU/XLPE/LSZH/SWA/LSZH 3G6
Nexans ref. 10586239 - Country ref. TR
- Packaging: Drum
- Approximate weight: 590 kg/km
- Conductor cross-section: 6 mm²
- Minimum outer diameter: 16.5 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Perm. current rating buried 20°C - flat formation: 49 A
- Perm. current rating in air 30°C - flat formation: 54 A
- Permissible short circuit current conductor 1s: 0.9 kA
CU/XLPE/LSZH/SWA/LSZH 4G10
Nexans ref. 10581931 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1040 kg/km
- Conductor cross-section: 10 mm²
- Minimum outer diameter: 21.5 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Perm. current rating buried 20°C - flat formation: 65 A
- Perm. current rating in air 30°C - flat formation: 75 A
- Permissible short circuit current conductor 1s: 1.4 kA
CU/XLPE/LSZH/SWA/LSZH 5G10
Nexans ref. 10581934 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1140 kg/km
- Conductor cross-section: 10 mm²
- Minimum outer diameter: 22.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Perm. current rating buried 20°C - flat formation: 65 A
- Perm. current rating in air 30°C - flat formation: 75 A
- Permissible short circuit current conductor 1s: 1.4 kA
CU/XLPE/LSZH/SWA/LSZH 3G10
Nexans ref. 10586204 - Country ref. TR
- Packaging: Drum
- Approximate weight: 880 kg/km
- Conductor cross-section: 10 mm²
- Minimum outer diameter: 19.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Perm. current rating buried 20°C - flat formation: 65 A
- Perm. current rating in air 30°C - flat formation: 75 A
- Permissible short circuit current conductor 1s: 1.4 kA
CU/XLPE/LSZH/SWA/LSZH 4G16
Nexans ref. 10581930 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1460 kg/km
- Conductor cross-section: 16 mm²
- Minimum outer diameter: 24.5 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Perm. current rating buried 20°C - flat formation: 84 A
- Perm. current rating in air 30°C - flat formation: 100 A
- Permissible short circuit current conductor 1s: 2.3 kA
CU/XLPE/LSZH/SWA/LSZH 5G16
Nexans ref. 10581899 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1640 kg/km
- Conductor cross-section: 16 mm²
- Minimum outer diameter: 25.5 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Perm. current rating buried 20°C - flat formation: 84 A
- Perm. current rating in air 30°C - flat formation: 100 A
- Permissible short circuit current conductor 1s: 2.3 kA
CU/XLPE/LSZH/SWA/LSZH 3G16
Nexans ref. 10586249 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1130 kg/km
- Conductor cross-section: 16 mm²
- Minimum outer diameter: 21.0 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Perm. current rating buried 20°C - flat formation: 84 A
- Perm. current rating in air 30°C - flat formation: 100 A
- Permissible short circuit current conductor 1s: 2.3 kA
CU/XLPE/LSZH/SWA/LSZH 3x25+1G15
Nexans ref. 10581919 - Country ref. TR
- Packaging: Drum
- Approximate weight: 1860 kg/km
- Conductor cross-section: 25 mm²
- Minimum outer diameter: 27.5 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Perm. current rating buried 20°C - flat formation: 107 A
- Perm. current rating in air 30°C - flat formation: 127 A
- Permissible short circuit current conductor 1s: 3.6 kA
CU/XLPE/LSZH/SWA/LSZH 3x35+1G25
Nexans ref. 10581897 - Country ref. TR
- Packaging: Drum
- Approximate weight: 2330 kg/km
- Conductor cross-section: 35 mm²
- Minimum outer diameter: 29.8 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Perm. current rating buried 20°C - flat formation: 129 A
- Perm. current rating in air 30°C - flat formation: 158 A
- Permissible short circuit current conductor 1s: 5 kA
CU/XLPE/LSZH/SWA/LSZH 3x50+1G25
Nexans ref. 10581896 - Country ref. TR
- Packaging: Drum
- Approximate weight: 2820 kg/km
- Conductor cross-section: 50 mm²
- Minimum outer diameter: 31.0 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Perm. current rating buried 20°C - flat formation: 153 A
- Perm. current rating in air 30°C - flat formation: 192 A
- Permissible short circuit current conductor 1s: 7.2 kA
CU/XLPE/LSZH/SWA/LSZH 3x70+1G35
Nexans ref. 10581918 - Country ref. TR
- Packaging: Drum
- Approximate weight: 4020 kg/km
- Conductor cross-section: 70 mm²
- Minimum outer diameter: 38.6 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Perm. current rating buried 20°C - flat formation: 188 A
- Perm. current rating in air 30°C - flat formation: 246 A
- Permissible short circuit current conductor 1s: 10 kA
CU/XLPE/LSZH/SWA/LSZH 3x95+1G50
Nexans ref. 10586205 - Country ref. TR
- Packaging: Drum
- Approximate weight: 5170 kg/km
- Conductor cross-section: 95 mm²
- Minimum outer diameter: 41.2 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Perm. current rating buried 20°C - flat formation: 226 A
- Perm. current rating in air 30°C - flat formation: 298 A
- Permissible short circuit current conductor 1s: 13.6 kA
CU/XLPE/LSZH/SWA/LSZH 4x95+1G50
Nexans ref. 10586248 - Country ref. TR
- Packaging: Drum
- Approximate weight: 6340 kg/km
- Conductor cross-section: 95 mm²
- Minimum outer diameter: 45.4 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Perm. current rating buried 20°C - flat formation: 226 A
- Perm. current rating in air 30°C - flat formation: 298 A
- Permissible short circuit current conductor 1s: 13.6 kA
CU/XLPE/LSZH/SWA/LSZH 4x120+1G70
Nexans ref. 10586240 - Country ref. TR
- Packaging: Drum
- Approximate weight: 8170 kg/km
- Conductor cross-section: 120 mm²
- Minimum outer diameter: 50.8 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Perm. current rating buried 20°C - flat formation: 257 A
- Perm. current rating in air 30°C - flat formation: 346 A
- Permissible short circuit current conductor 1s: 17.2 kA
CU/XLPE/LSZH/SWA/LSZH 3x150+1G95
Nexans ref. 10586206 - Country ref. TR
- Packaging: Drum
- Approximate weight: 8050 kg/km
- Conductor cross-section: 150 mm²
- Minimum outer diameter: 50.5 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm. current rating buried 20°C - flat formation: 287 A
- Perm. current rating in air 30°C - flat formation: 399 A
- Permissible short circuit current conductor 1s: 21.4 kA
CU/XLPE/LSZH/SWA/LSZH 4x150+1G95
Nexans ref. 10586246 - Country ref. TR
- Packaging: Drum
- Approximate weight: 9770 kg/km
- Conductor cross-section: 150 mm²
- Minimum outer diameter: 54.7 mm
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Perm. current rating buried 20°C - flat formation: 287 A
- Perm. current rating in air 30°C - flat formation: 399 A
- Permissible short circuit current conductor 1s: 21.4 kA
CU/XLPE/LSZH/SWA/LSZH 3x185+1G95
Nexans ref. 10586209 - Country ref. TR
- Packaging: Drum
- Approximate weight: 9500 kg/km
- Conductor cross-section: 185 mm²
- Minimum outer diameter: 55.3 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Perm. current rating buried 20°C - flat formation: 324 A
- Perm. current rating in air 30°C - flat formation: 456 A
- Permissible short circuit current conductor 1s: 26.5 kA
CU/XLPE/LSZH/SWA/LSZH 3x240+1G120
Nexans ref. 10586220 - Country ref. TR
- Packaging: Drum
- Approximate weight: 12010 kg/km
- Conductor cross-section: 240 mm²
- Minimum outer diameter: 62.2 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Perm. current rating buried 20°C - flat formation: 375 A
- Perm. current rating in air 30°C - flat formation: 538 A
- Permissible short circuit current conductor 1s: 34.3 kA
Description
Description
Application
Suitable for installations in energy networks where for safety reasons low smoke halogen free and flame retardant cables are specified. The cable is suitable for installation undergorund, in ducts or in air.
Construction
- Conductor:Copper
- Insulation:XLPE
- Assembling:Inner sheath acting as a filler
- Inner sheath:Low smoke, zero halogen (LSZH) Natural colour
- Metallic armour:Galvanized steel wires (GSWA)
- Outer sheath:LSZH - Black
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper class 2
Conductor shape
Round, stranded
Insulation
XLPE (Cross-linked Polyethylene)
Armour type
Galvanized steel wires
Outer sheath
LSZH
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Delivery reel size for 1000m
- cm
Electrical characteristics
Electrical characteristics
DC permissible current rating
- A
Permissible short circuit current screen 1s
- kA
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Flame retardant
IEC 60332-3 Cat. B
Gases corrosivity
IEC 60754-2
Max. conductor temperature in service
- °C
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
90 °C
Smoke density
IEC 61034-2
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
