CU/XLPE/LSZH Single Core 0.6/1 kV - Dca Class
CU/XLPE/LSZH Single Core 0.6/1 kV - Dca Class
0.6/1 kV XLPE insulated flame retardant single-core cables with copper conductor.
Read moreCU/XLPE/LSZH 1G400 mm2
Nexans ref. 10586977 - Country ref. TR
- Packaging: Drum (1000m)
- Sheath colour:
- Approximate weight: 4130 kg/km
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 34.0 mm
CU/XLPE/LSZH 1x185 mm2
Nexans ref. 10579931 - Country ref. TR
- Packaging: Drum (1000m)
- Sheath colour: Black
- Approximate weight: 2080 kg/km
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 25.6 mm
CU/XLPE/LSZH 1x400 mm2
Nexans ref. 10579930 - Country ref. TR
- Packaging: Drum (1000m)
- Sheath colour: Black
- Approximate weight: 4130 kg/km
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 34.0 mm
CU/XLPE/LSZH 1x630 mm2
Nexans ref. 10577504 - Country ref. TR
- Packaging: Drum (1000m)
- Sheath colour: Black
- Approximate weight: 6610 kg/km
- Conductor cross-section: 630 mm²
- Nominal outer diameter: 41.8 mm
Description
Description
Standards
-
ProductEN 50575; IEC 60502
-
TestIEC 60332-3 Cat.A; IEC 60754; IEC 61034
Application
Used in energy networks in hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, business centers where there is need reaction to fire.

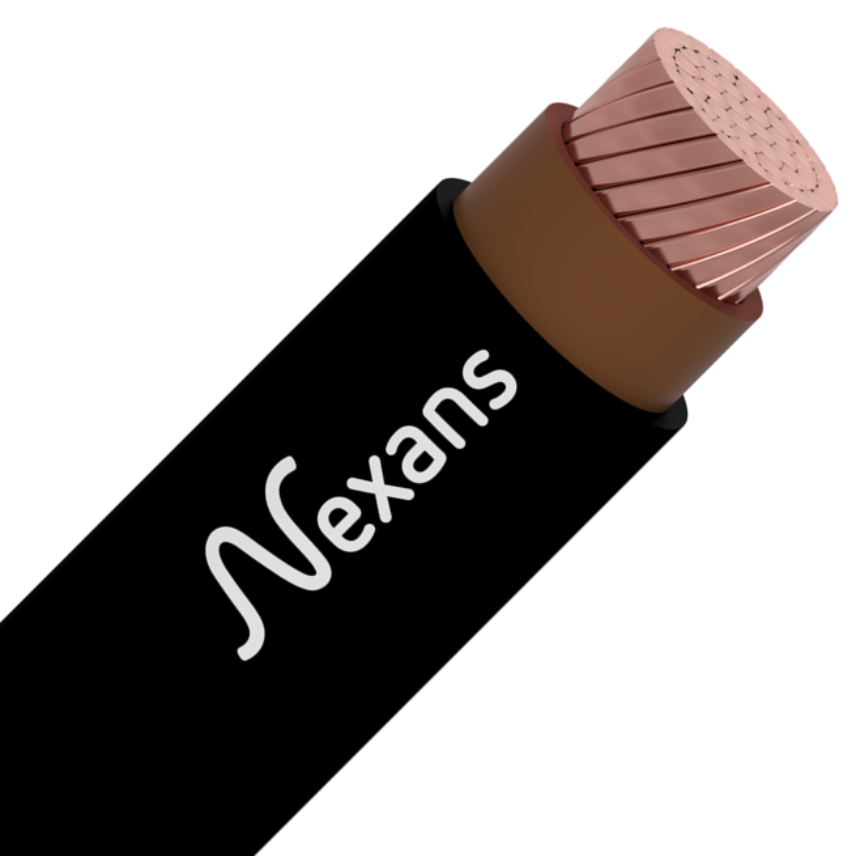

Construction
1.Conductor : Copper
2.Insulatıon : XLPE
3.Outer Sheath : LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Round, stranded
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
LSZH
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Bending factor when laying
8 (xD)
Max. conductor temperature in service
90 °C
Operating temperature, range
... °C
Smoke density
IEC 61034-2
