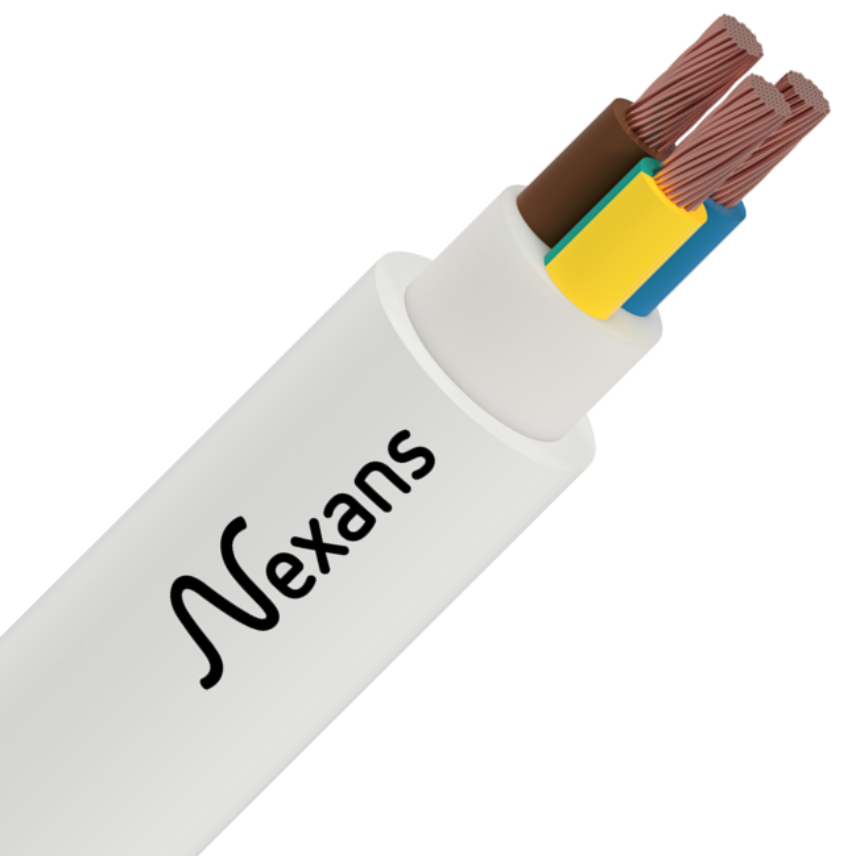

052XZ1-F 300/500 V

052XZ1-F 300/500 V

052XZ1-F 300/500 V

300/500 V multi-core halogen free cables

Read more
Contact us

Products

Actions
Filters

  • products

052XZ1-F 2x0.75 mm2

Nexans ref. 10519035 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 2
  • Approximate weight: 65 kg/km
  • Maximum outer diameter: 7.1 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 2x0.75 mm2

Nexans ref. 10542302 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: Black
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 2
  • Approximate weight: 65 kg/km
  • Maximum outer diameter: 7.1 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 2x1 mm2

Nexans ref. 10519034 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 1 mm²
  • Number of cores: 2
  • Approximate weight: 70 kg/km
  • Maximum outer diameter: 7.5 mm
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km



052XZ1-F 2x1 mm2

Nexans ref. 10557996 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: Black
  • Conductor cross-section: 1 mm²
  • Number of cores: 2
  • Approximate weight: 70 kg/km
  • Maximum outer diameter: 7.5 mm
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km



052XZ1-F 2x1.5 mm2

Nexans ref. 10519033 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 2
  • Approximate weight: 110 kg/km
  • Maximum outer diameter: 9.3 mm
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km



052XZ1-F 2x2.5 mm2

Nexans ref. 10519032 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 2
  • Approximate weight: 130 kg/km
  • Maximum outer diameter: 9.7 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 2x4 mm2

Nexans ref. 10519031 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 4 mm²
  • Number of cores: 2
  • Approximate weight: 190 kg/km
  • Maximum outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 2x6 mm2

Nexans ref. 10538930 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, Blue
  • Sheath colour: White
  • Conductor cross-section: 6 mm²
  • Number of cores: 2
  • Approximate weight: 280 kg/km
  • Maximum outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 3G0.75 mm2

Nexans ref. 10519030 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 3
  • Approximate weight: 75 kg/km
  • Maximum outer diameter: 7.4 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 3G1 mm2

Nexans ref. 10519029 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 1 mm²
  • Number of cores: 3
  • Approximate weight: 85 kg/km
  • Maximum outer diameter: 7.9 mm
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km



052XZ1-F 3G1.5 mm2

Nexans ref. 10519028 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 3
  • Approximate weight: 130 kg/km
  • Maximum outer diameter: 9.7 mm
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km



052XZ1-F 3G2.5 mm2

Nexans ref. 10519027 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 3
  • Approximate weight: 160 kg/km
  • Maximum outer diameter: 10.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 3G2.5 mm2

Nexans ref. 10546609 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: Black
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 3
  • Approximate weight: 160 kg/km
  • Maximum outer diameter: 10.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 3G4 mm2

Nexans ref. 10519026 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 4 mm²
  • Number of cores: 3
  • Approximate weight: 240 kg/km
  • Maximum outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 3G6 mm2

Nexans ref. 10530952 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Approximate weight: 320 kg/km
  • Maximum outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 3G6 mm2

Nexans ref. 10535548 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Black, blue, green / yellow
  • Sheath colour: Grey
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Approximate weight: 320 kg/km
  • Maximum outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 3x0.75 mm2

Nexans ref. 10536603 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 3
  • Approximate weight: 75 kg/km
  • Maximum outer diameter: 7.4 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 3x1.5 mm2

Nexans ref. 10536604 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 3
  • Approximate weight: 130 kg/km
  • Maximum outer diameter: 9.7 mm
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km



052XZ1-F 4x0.75 mm2

Nexans ref. 10519025 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 4
  • Approximate weight: 85 kg/km
  • Maximum outer diameter: 8.0 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 4x0.75 mm2

Nexans ref. 10536605 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 0.75 mm²
  • Number of cores: 4
  • Approximate weight: 85 kg/km
  • Maximum outer diameter: 8.0 mm
  • Max. DC resistance of the conductor at 20°C: 26 Ohm/km



052XZ1-F 4x1 mm2

Nexans ref. 10519024 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 1 mm²
  • Number of cores: 4
  • Approximate weight: 100 kg/km
  • Maximum outer diameter: 8.7 mm
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km



052XZ1-F 4x1.5 mm2

Nexans ref. 10519023 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 4
  • Approximate weight: 150 kg/km
  • Maximum outer diameter: 10.0 mm
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km



052XZ1-F 4x2.5 mm2

Nexans ref. 10519022 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 4
  • Approximate weight: 190 kg/km
  • Maximum outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 4x2.5 mm2

Nexans ref. 10536606 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 4
  • Approximate weight: 190 kg/km
  • Maximum outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 4x4 mm2

Nexans ref. 10519021 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 4 mm²
  • Number of cores: 4
  • Approximate weight: 300 kg/km
  • Maximum outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 4x4 mm2

Nexans ref. 10532378 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 4 mm²
  • Number of cores: 4
  • Approximate weight: 300 kg/km
  • Maximum outer diameter: 14.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 4x6 mm2

Nexans ref. 10532379 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: Black
  • Conductor cross-section: 6 mm²
  • Number of cores: 4
  • Approximate weight: 400 kg/km
  • Maximum outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 4x6 mm2

Nexans ref. 10542552 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Sheath colour: White
  • Conductor cross-section: 6 mm²
  • Number of cores: 4
  • Approximate weight: 400 kg/km
  • Maximum outer diameter: 16.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 5G1 mm2

Nexans ref. 10538931 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 1 mm²
  • Number of cores: 5
  • Approximate weight: 120 kg/km
  • Maximum outer diameter: 9.3 mm
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km



052XZ1-F 5G1.5 mm2

Nexans ref. 10542554 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 5
  • Approximate weight: 170 kg/km
  • Maximum outer diameter: 11.0 mm
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km



052XZ1-F 5G2.5 mm2

Nexans ref. 10541807 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: Black
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 5
  • Approximate weight: 220 kg/km
  • Maximum outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 5G2.5mm2

Nexans ref. 10521777 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 5
  • Approximate weight: 220 kg/km
  • Maximum outer diameter: 12.0 mm
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km



052XZ1-F 5G4 mm2

Nexans ref. 10541806 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: Black
  • Conductor cross-section: 4 mm²
  • Number of cores: 5
  • Approximate weight: 340 kg/km
  • Maximum outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 5G4 mm2

Nexans ref. 10542555 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 4 mm²
  • Number of cores: 5
  • Approximate weight: 340 kg/km
  • Maximum outer diameter: 15.0 mm
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km



052XZ1-F 5G6 mm2

Nexans ref. 10535549 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: Grey
  • Conductor cross-section: 6 mm²
  • Number of cores: 5
  • Approximate weight: 480 kg/km
  • Maximum outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 5G6 mm2

Nexans ref. 10541805 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: Black
  • Conductor cross-section: 6 mm²
  • Number of cores: 5
  • Approximate weight: 480 kg/km
  • Maximum outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



052XZ1-F 5G6 mm2

Nexans ref. 10542556 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Sheath colour: White
  • Conductor cross-section: 6 mm²
  • Number of cores: 5
  • Approximate weight: 480 kg/km
  • Maximum outer diameter: 17.0 mm
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km



Description

Description

Standards

  • National
    TS 13751

Application

For household and office appliances where there is a risk of fire

Construction

  1. Conductor: Flexible copper
  2. Insulation: XLPE
  3. Outer sheath: LSZH

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Halogen free
IEC 60754-1
Conductor flexibility
Flexible class 5
Conductor material
Copper
Conductor shape
Round, multi stranded
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
LSZH

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
300/500 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Smoke density
IEC 61034
Bending factor when laying
8 (xD)
Flame retardant
IEC 60332-3 Cat. C
Gases corrosivity
IEC 60754-2
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
