N2XRY -CU/XLPE/PVC/SWA/PVC (IEC)

Products

CU/XLPE/PVC/SWA/PVC 12x2.5 mm2

Nexans ref. 10567727 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Numbers
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 2x4 mm2

Nexans ref. 10567732 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3G2.5 mm2

Nexans ref. 10567733 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, green / yellow
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3x120 mm2

Nexans ref. 10567737 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3x240 mm2

Nexans ref. 10567738 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3x25 mm2

Nexans ref. 10567734 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3x50 mm2

Nexans ref. 10567735 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 3x95 mm2

Nexans ref. 10567736 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x120 mm2

Nexans ref. 10567745 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x150 mm2

Nexans ref. 10567746 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x185 mm2

Nexans ref. 10567747 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x240 mm2

Nexans ref. 10567748 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x25 mm2

Nexans ref. 10567742 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x35 mm2

Nexans ref. 10567743 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 4x50 mm2

Nexans ref. 10567744 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 5G16 mm2

Nexans ref. 10567749 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 5G240 mm2

Nexans ref. 10562832 - Country ref. TR

  • Packaging: Drum (500m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Flame retardant: IEC 60332-1-2



CU/XLPE/PVC/SWA/PVC 5G25 mm2

Nexans ref. 10567760 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Blue, brown, black, grey, green / yellow
  • Flame retardant: IEC 60332-3 Cat. C



CU/XLPE/PVC/SWA/PVC 5x2.5 mm2

Nexans ref. 10567726 - Country ref. TR

  • Packaging: Drum (1000m)
  • Core identification: Numbers
  • Flame retardant: IEC 60332-3 Cat. C



Description

Description

Standards

  • Product
    IEC 60502-1
  • National
    TS IEC 60502

Application

These cables with a low dielectric loss coupledwith mechanical resistance are mainly used in energy networks with sudden load change residential or industrial areas. Can be laid outdoors, undergrounds and in areas where sudden mechanical stresses are expected

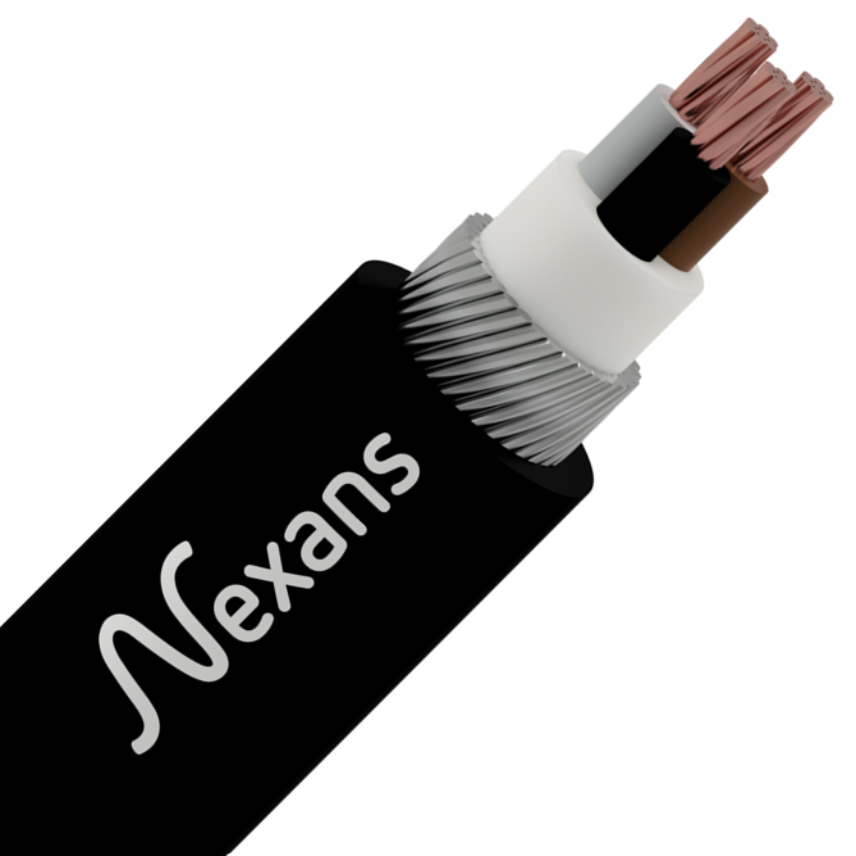

Construction

  1. Conductor:Copper
  2. Insulatıon:XLPE
  3. Filler:PVC
  4. Armour:Single layer galvanized round steel wires
  5. Outer Sheath:PVC

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Armour type
Galvanised round steel wires
Conductor material
Copper
Conductor shape
Circular stranded (RM)
Insulation
XLPE
Material of filler / inner sheath
PVC
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Bending factor when laying
12 (xD)
Maximum operating temperature
90 °C
Operating temperature, range
-20 ... 60 °C
