NA2XY - YAKXS Eca Class
NA2XY - YAKXS Eca Class

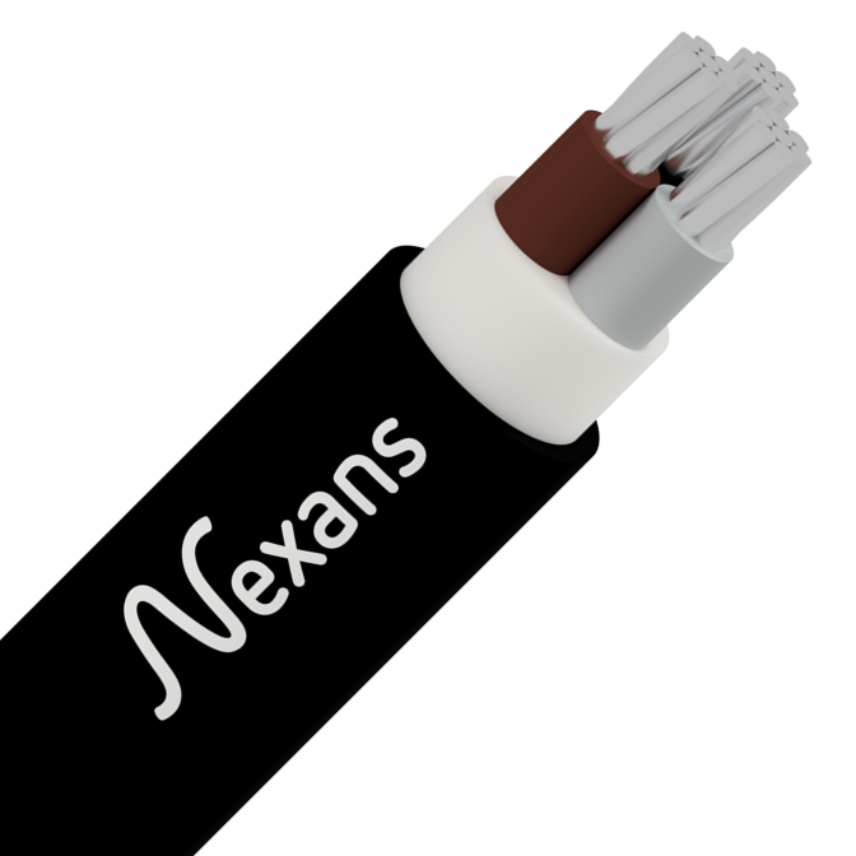

0,6/1 kV XLPE insulated multi-core PVC sheathed cable with aluminum conductors
Read more
Description
Description
Standards
-
InternationalIEC 60502-1
Application
These cables have a low dielectric loss,used in energy networks with sudden load chances. Installed mainly in residential or industrial areas. May be laid outdoors, underground or in ducts.
Construction
- Conductor : Aluminum
- Insulation : XLPE
- Bedding : PVC
- Outher Sheath: PVC
Marking
NEXANS IEC 60502 NA2XY Number of cores x cross section 0.6/1 kV 'YEAR'
NEXANS IEC 60502-1 NA2XY - YAKXS Number of cores x cross section 0.6/1 kV 'YEAR'
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Aluminum
Conductor shape
Circular stranded (RM)
Core identification
Blue, brown, black, grey
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
PVC
With Green/Yellow core
No
With smaller neutral conductor
No
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Bending factor when installed
8 (xD)
Flame retardant
IEC 60332-1-2
Maximum operating temperature
90 °C
Operating temperature, range
-20 ... 60 °C
Packaging
Drum
Short-circuit max. conductor temperature
250 °C
