CU/XLPE/CTS/PVC/SWA/PVC 12.7/22 kV
CU/XLPE/CTS/PVC/SWA/PVC 12.7/22 kV

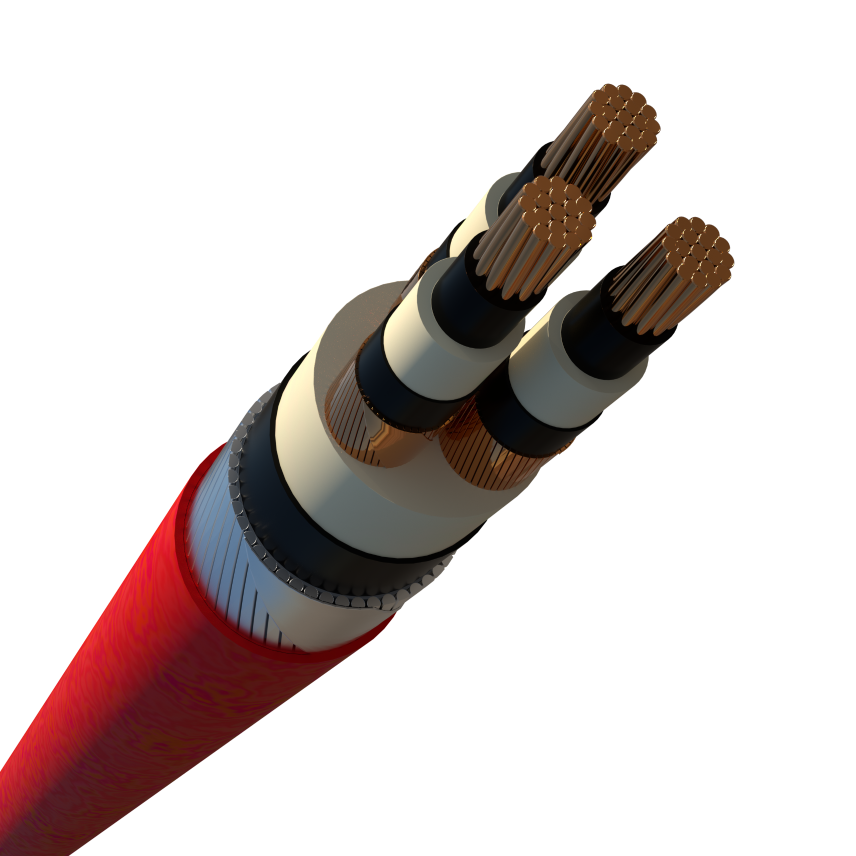

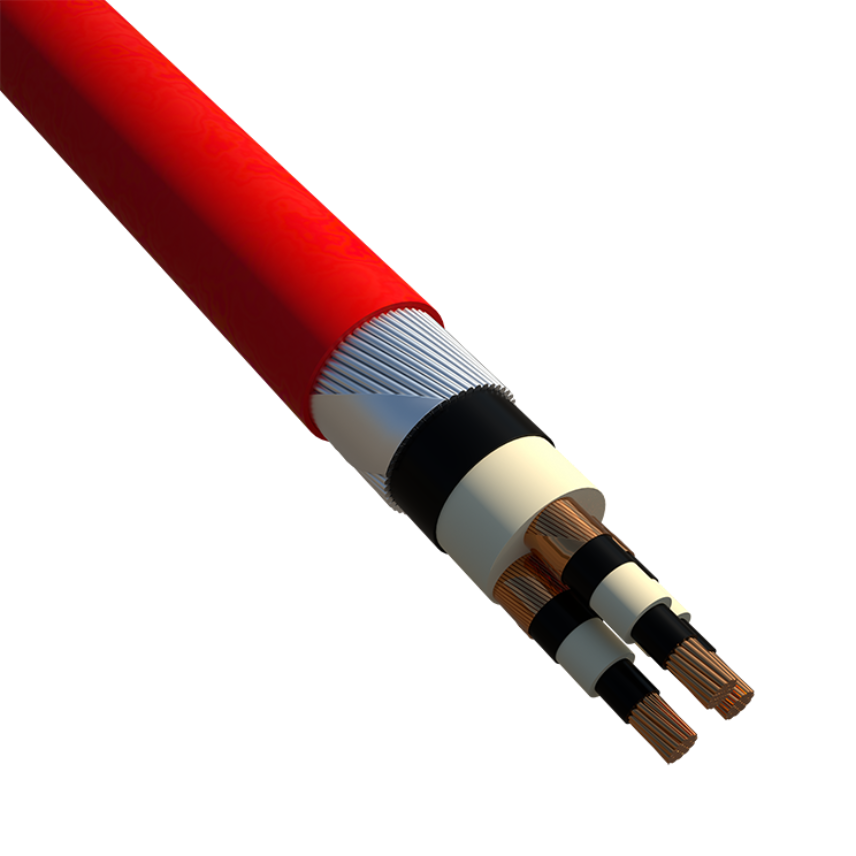

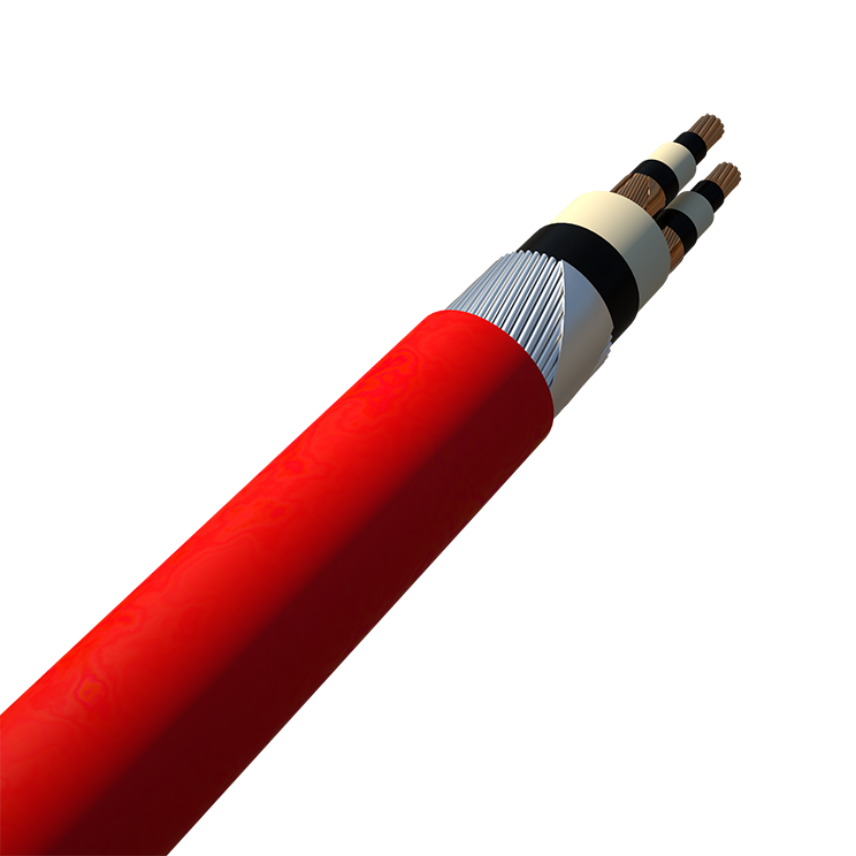

12.7/22 kV XLPE insulated steel wire armoured, three core cables with copper conductor
Read moreCU/XLPE/CTS/PVC/SWA/PVC 3x70 mm2
Nexans ref. 10536622 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 70 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x95 mm2
Nexans ref. 10536623 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 95 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x120 mm2
Nexans ref. 10536624 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 120 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x150 mm2
Nexans ref. 10531176 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 150 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x185 mm2
Nexans ref. 10531177 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 185 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x240 mm2
Nexans ref. 10536625 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 240 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x300 mm2
Nexans ref. 10536626 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 300 mm²
CU/XLPE/CTS/PVC/SWA/PVC 3x400 mm2
Nexans ref. 10536627 - Country ref. TR
- Packaging: Drum (500m)
- Conductor cross-section: 400 mm²
Description
Description
Standards
-
ProductBS 6622
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper tape
- Filler:PVC
- Separation sheath:PVC
- Armour:Single layer galvanized steel wire
- Outer sheath:PVC
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Bending factor when laying
12 (xD)
Max. conductor temperature in service
90 °C
