CU/XLPE/CTS/LSZH/AWA/LSZH 6.35/11 kV- Cca Class
CU/XLPE/CTS/LSZH/AWA/LSZH 6.35/11 kV- Cca Class

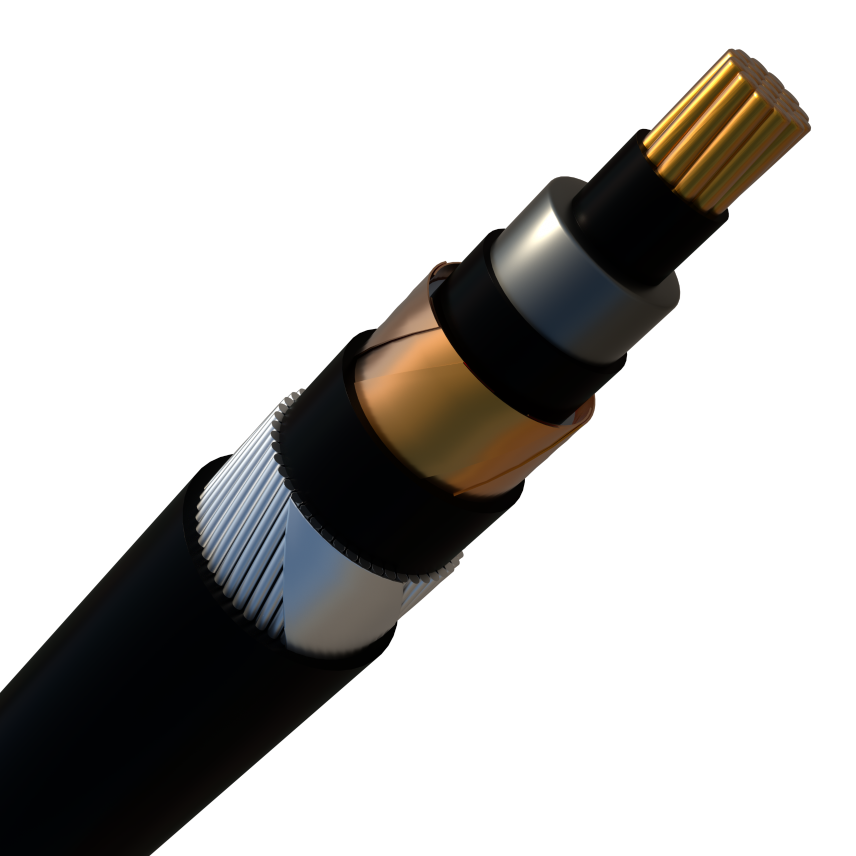

6.35/11 kV XLPE insulated aluminium wire armoured, single core LSZH cables with copper conductor
Read moreCU/XLPE/CTS/LSZH/AWA/LSZH 1x70 mm2
Nexans ref. 10551024 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x95 mm2
Nexans ref. 10551025 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x120 mm2
Nexans ref. 10551026 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x150 mm2
Nexans ref. 10551027 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x185 mm2
Nexans ref. 10551028 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x240 mm2
Nexans ref. 10551029 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x300 mm2
Nexans ref. 10551030 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x400 mm2
Nexans ref. 10551031 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x500 mm2
Nexans ref. 10551032 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 500 mm²
CU/XLPE/CTS/LSZH/AWA/LSZH 1x630 mm2
Nexans ref. 10551033 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 630 mm²
Description
Description
Standards
-
ProductBS 7835
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper Wires / Copper tapes
- Separation sheath:LSZH
- Wire armour:Single layer aluminium wire
- Outer sheath:LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
