CU/XLPE/CWS/LSZH/AWA/LSZH 6.35/11 kV- Cca Class
CU/XLPE/CWS/LSZH/AWA/LSZH 6.35/11 kV- Cca Class

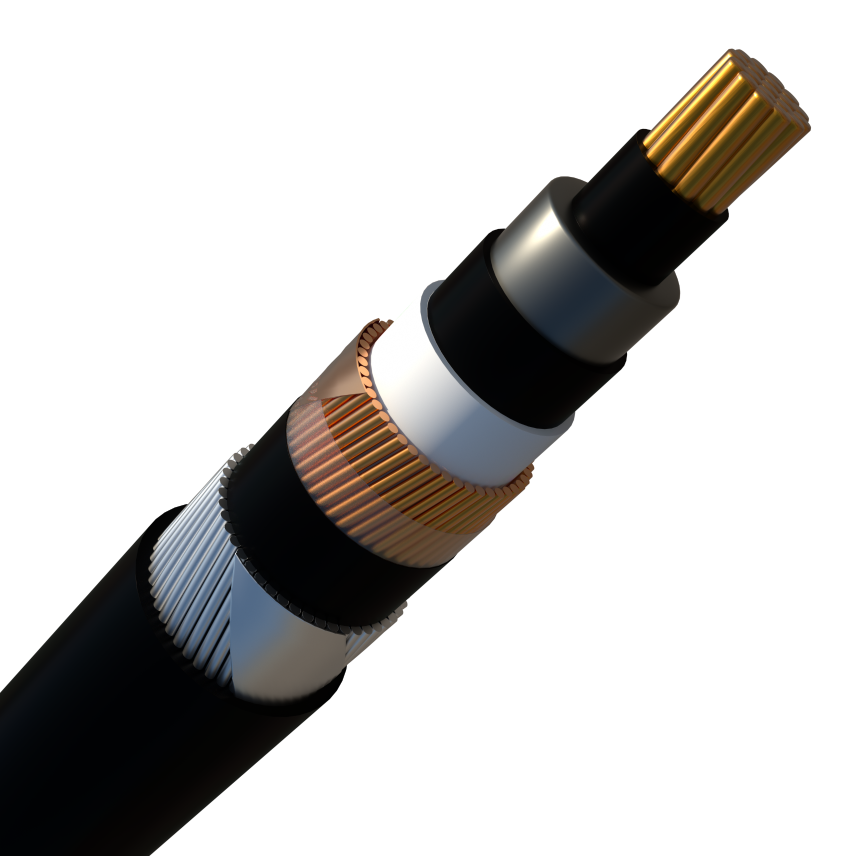

6.35/11 kV XLPE insulated aluminium wire armoured, single core cables with copper conductor
Read moreCU/XLPE/CWS/LSZH/AWA/LSZH 1x120/16 mm2
Nexans ref. 10557415 - Country ref. TR
- Packaging: Cut to length (m)
CU/XLPE/CWS/LSZH/AWA/LSZH 1x120/25 mm2
Nexans ref. 10557331 - Country ref. TR
- Packaging: Cut to length (m)
Description
Description
Standards
-
ProductBS 7835
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper wires+counter helix tape
- Separation sheath:LSZH
- Wire armour:Single layer aluminium wire
- Outer sheath:LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
IEC 60754-1
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
120 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
6.35 / 11 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-3 Cat. C
Bending factor when laying
15 (xD)
Gases corrosivity
IEC 60754-2
Max. conductor temperature in service
90 °C
Smoke density
IEC 61034
