CU/XLPE/CWS/PVC/AWA/PVC (RHVhMAVh) 26/45 kV
CU/XLPE/CWS/PVC/AWA/PVC (RHVhMAVh) 26/45 kV
26/45 kV XLPE insulated aluminium wire armoured, single core PVC sheathed cables with copper conductor
Read moreCU/XLPE/CWS/PVC/AWA/PVC 1x150/16 mm2
Nexans ref. 10560651 - Country ref. TR
- Packaging: Cut to length (m)
Description
Description
Standards
-
TestIEC 60840
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.

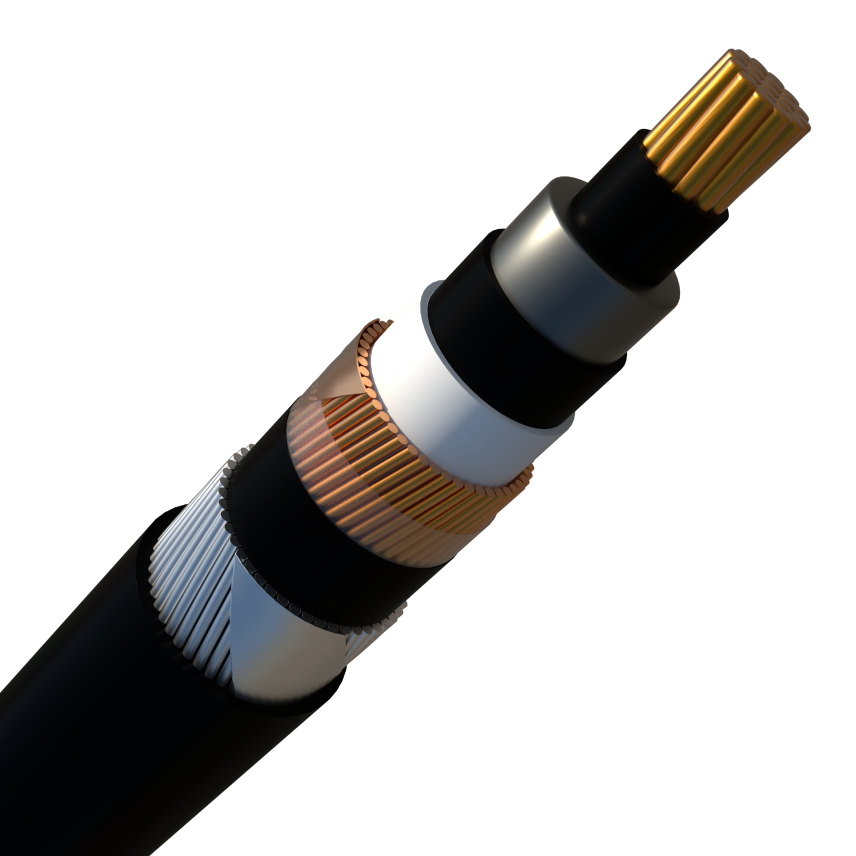

Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper Wires / Copper tapes
- Separation sheath:PVC
- Wire armour:Single layer aluminium wire
- Outer sheath:PVC
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
150 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
26/45 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-3 Cat. C
Bending factor when laying
15 (xD)
Max. conductor temperature in service
90 °C
