N2XSEHRH - 6/10 kV - Eca Class
N2XSEHRH - 6/10 kV - Eca Class

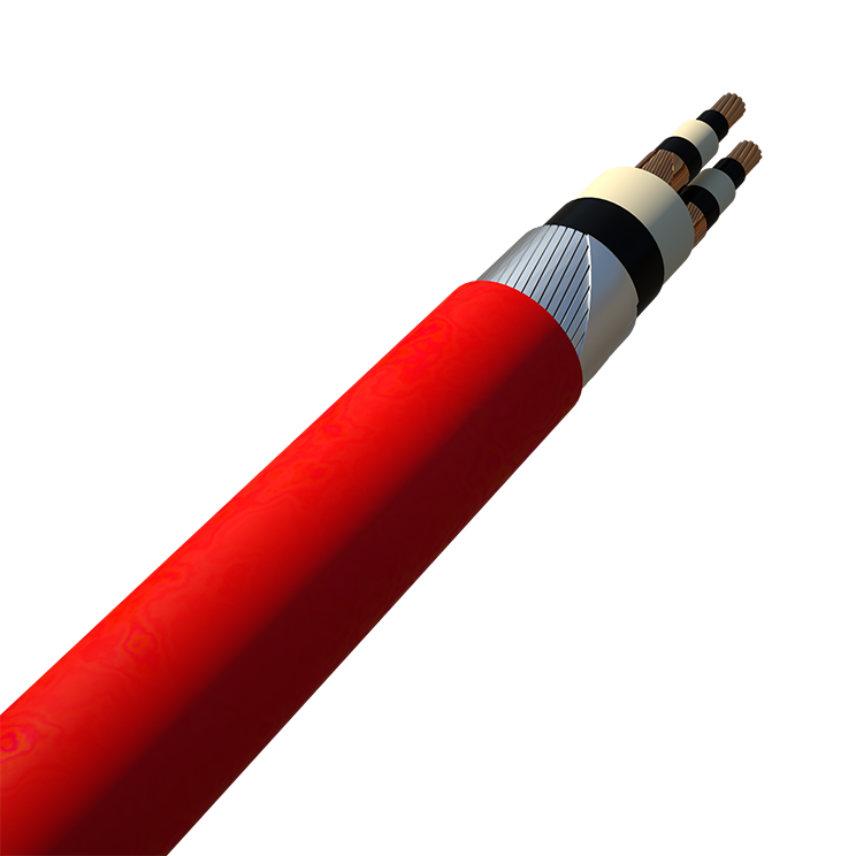

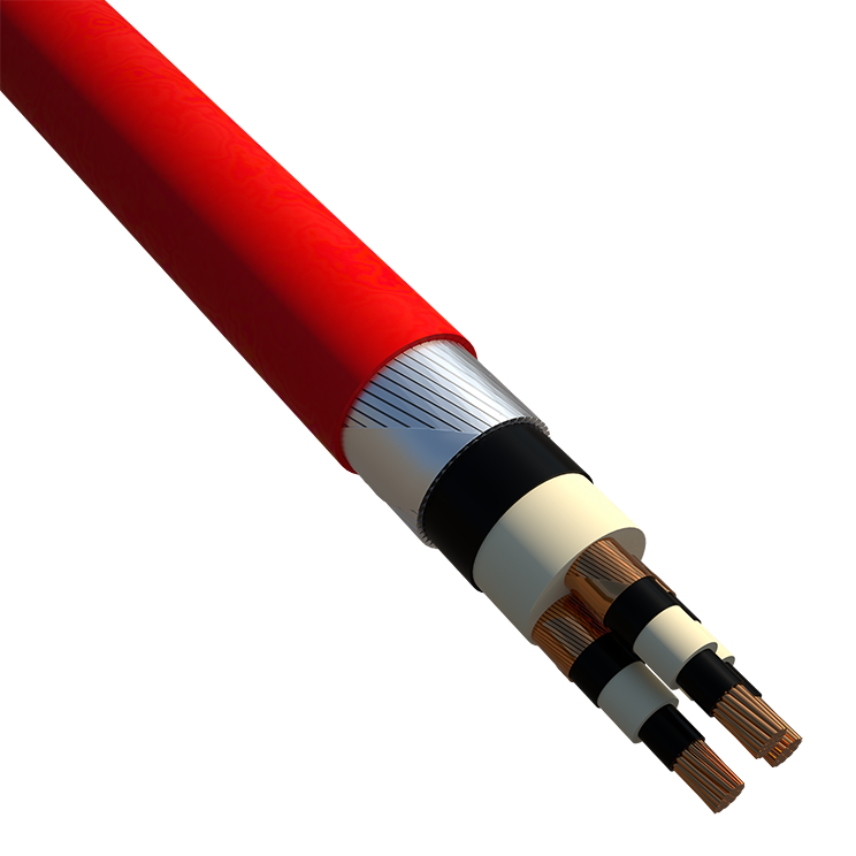

6/10 kV XLPE insulated, steel wire armoured, three core LSZH sheathed cables with copper conductor
Read moreN2XSEHRH 3x95 mm2
Nexans ref. 10573169 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
N2XSEHRH 3x120 mm2
Nexans ref. 10573168 - Country ref. TR
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
Description
Description
Standards
-
ProductIEC 60502-2
Application
Suitable for installations in energy networks where for safety reasons low smoke halogen free and flam retardant cables are specified. The cable is suitable for installation undergorund, in ducts or in air.

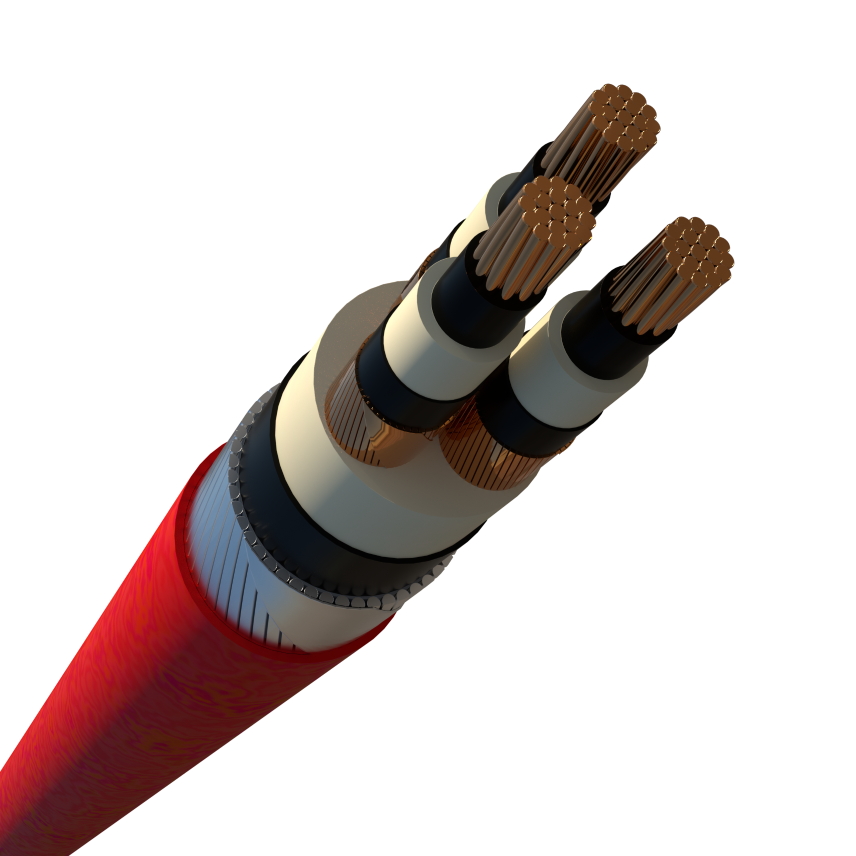

Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Copper wires + tape
- Filler:LSZH
- Separation sheath:LSZH
- Armour:Single layer galvanized steel wire
- Outer sheath:LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
IEC 60754-1
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
6 / 10 (12) kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-3 Cat. C
Bending factor when laying
12 (xD)
Gases corrosivity
IEC 60754-2
Max. conductor temperature in service
90 °C
Smoke density
IEC 61034
U.V resistance
Yes
