YXC7Z1Y2Z1 20.3/35 kV
YXC7Z1Y2Z1 20.3/35 kV
20,3/35 kV XLPE insulated single core armoured cables with copper conductor
Read moreYXC7Z1Y2Z1 1x95/16mm2
Nexans ref. 10564587 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 95 mm²
- Nominal outer sheath thickness: 2.4 mm
YXC7Z1Y2Z1 1x240/25mm2
Nexans ref. 10563510 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
- Nominal outer sheath thickness: 2.7 mm
YXC7Z1Y2Z1 1x240/25mm2
Nexans ref. 10567304 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
- Nominal outer sheath thickness: 2.7 mm
Description
Description
Standards
-
NationalTSEK
Application
These are cables with low dielectric losses used in energy network with sudden load changes. Laid in residental or industrial areas, underground or in ducts.

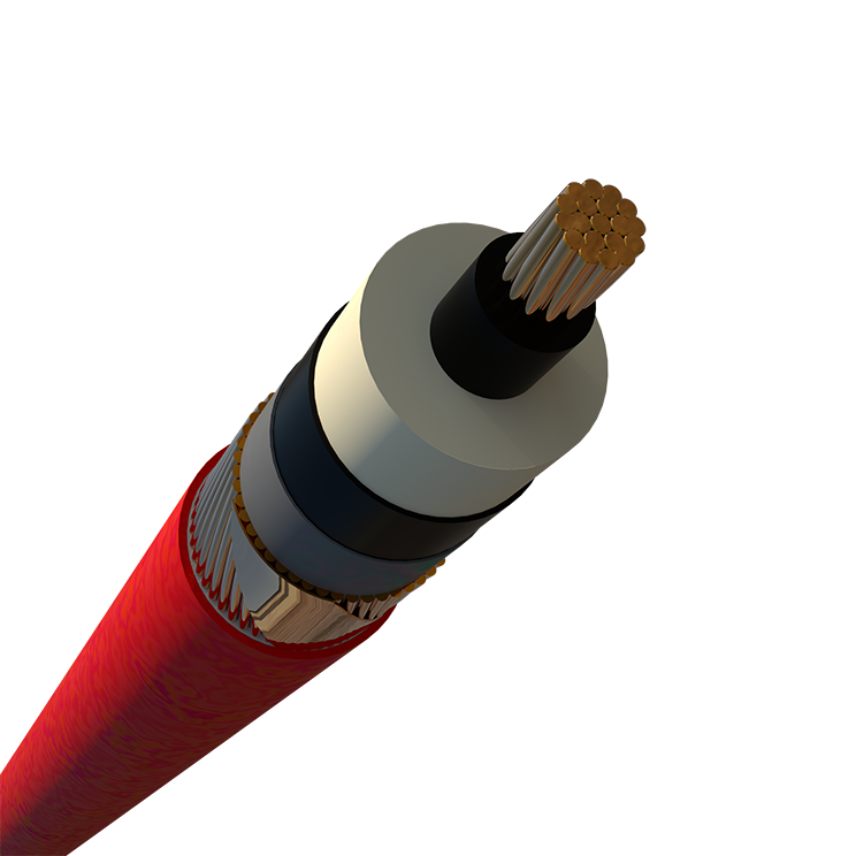

Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound (XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound (XLPE)
- Semi-conducting tape:Crape tape
- Metallic screen:Concentric / Copper wires + copper tape
- Seperation Sheath: LSZH
- Armour: Round aluminium wires
- Outer sheath:LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Single layer of aluminium wires
Conductor flexibility
Class 2
Type of conductor
Circular, stranded, class 2
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Average insulation thickness
8.5 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
20.3 / 35 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-3-24
Bending factor when laying
12 (xD)
Max. conductor temperature in service
90 °C
