YXC8VZ3V (TSE) - N2XSEYFGY (IEC) 3,6/6 kV
YXC8VZ3V (TSE) - N2XSEYFGY (IEC) 3,6/6 kV

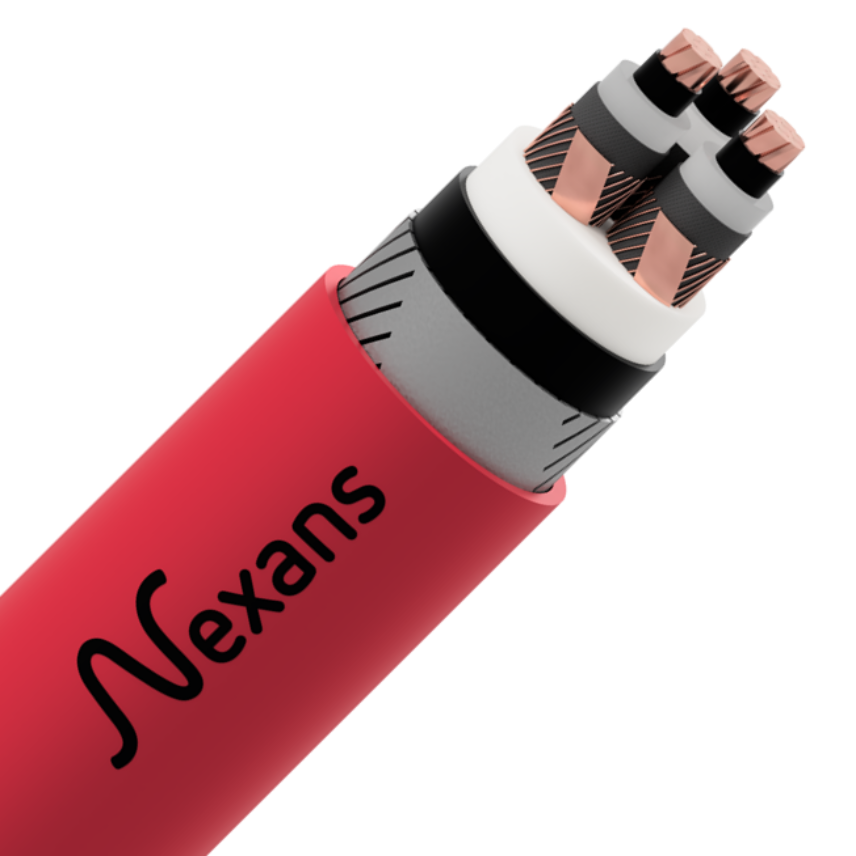

3,6/6 kV XLPE insulated flat steel wire armoured, three core cables with copper conductor
Read moreYXC8VZ3V 3x25 mm2
Nexans ref. 10531066 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 25 mm²
YXC8VZ3V 3x35 mm2
Nexans ref. 10531067 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 35 mm²
YXC8VZ3V 3x50 mm2
Nexans ref. 10531068 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 50 mm²
YXC8VZ3V 3x70 mm2
Nexans ref. 10531069 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 70 mm²
YXC8VZ3V 3x95 mm2
Nexans ref. 10531070 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 95 mm²
YXC8VZ3V 3x120 mm2
Nexans ref. 10531071 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 120 mm²
YXC8VZ3V 3x150 mm2
Nexans ref. 10531072 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 150 mm²
YXC8VZ3V 3x185 mm2
Nexans ref. 10531073 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 185 mm²
YXC8VZ3V 3x240 mm2
Nexans ref. 10531074 - Country ref. TR
- Packaging: Drum (m)
- Conductor cross-section: 240 mm²
Description
Description
Standards
-
ProductIEC 60502-2
-
NationalTS IEC 60502
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
Construction
- Conductor : Copper
- Conductor screen : Semi-conducting compound(XLPE)
- Insulation : XLPE
- Insulation screen : Semi-conducting compound(XLPE)
- Semi-conducting tape : Crape paper
- Metallic Screen : Concentric/Copper wire + copper tape
- Filler : PVC
- Separation sheath : PVC
- Armour : Single layer galvanized flat steel wire + steel tape
- Outer sheath : PVC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Circular compacted
Armour type
Galvanized flat steel wires (F)
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
3.6/6 kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Bending factor when laying
12 (xD)
Max. conductor temperature in service
90 °C
