YXC8VZ3V-A 20,3/35 kV

Products

YXC8VZ3V-A 3x50 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (500m)
  • Conductor cross-section: 50 mm²



YXC8VZ3V-A 3x70 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (500m)
  • Conductor cross-section: 70 mm²



YXC8VZ3V-A 3x95 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (500m)
  • Conductor cross-section: 95 mm²



YXC8VZ3V-A 3x120 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (250m)
  • Conductor cross-section: 120 mm²



YXC8VZ3V-A 3x150 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (250m)
  • Conductor cross-section: 150 mm²



YXC8VZ3V-A 3x185 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (250m)
  • Conductor cross-section: 185 mm²



YXC8VZ3V-A 3x240 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (250m)
  • Conductor cross-section: 240 mm²



YXC8VZ3V-A 3x300 mm2

Nexans ref. - Country ref. TR

  • Packaging: Drum (250m)
  • Conductor cross-section: 300 mm²



Description

Description

Standards

  • National
    TSEK

Application

These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.

Construction

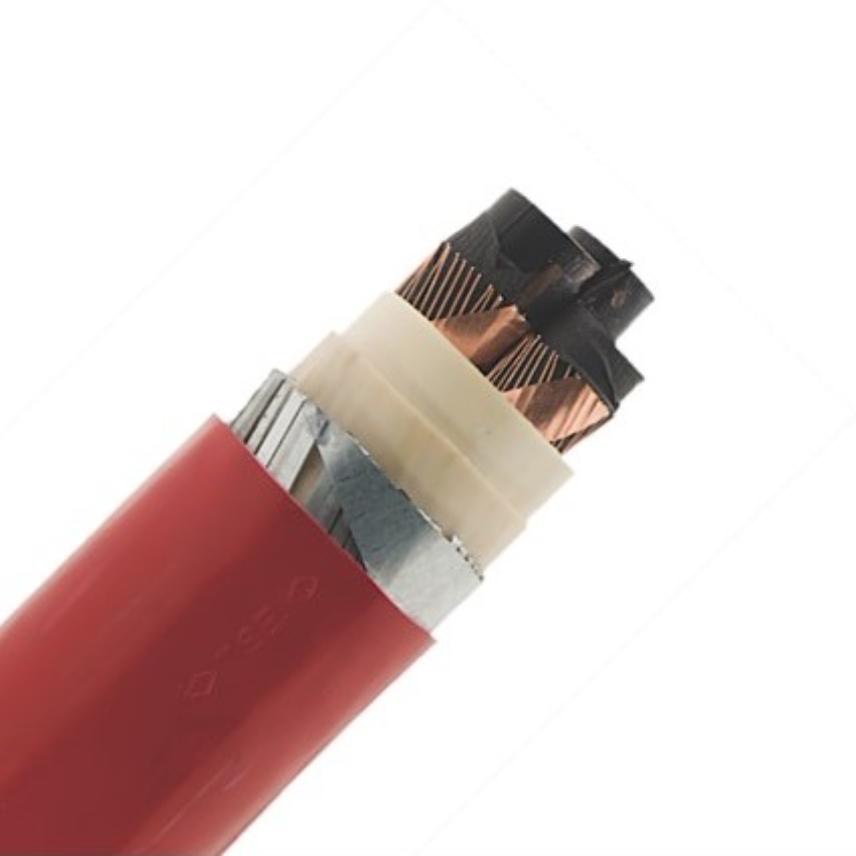

  1. Conductor:Aluminum
  2. Conductor screen:Semi-conducting compound(XLPE)
  3. Insulation:XLPE
  4. Insulation screen:Semi-conducting(XLPE)
  5. Semi-conducting tape:Crape paper
  6. Metallic screen:Concentric/Copper wire+copper tape
  7. Filler:PVC
  8. Separation sheath : PVC
  9. Armour:Single layer galvanized flat steel wire + steel tape
  10. Outer sheath:PVC

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
20.3 / 35 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Operating temperature, range
-20 ... 60 °C
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Bending factor when laying
12 (xD)
Max. conductor temperature in service
90 °C
