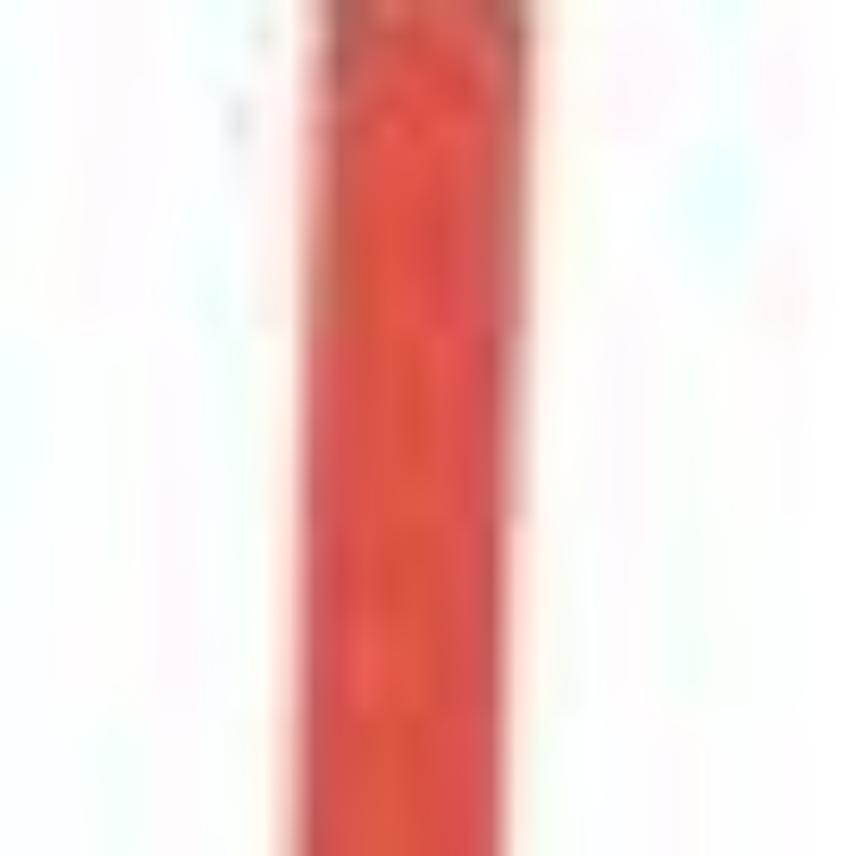

U/UTP Category 5e, 4 pairs PVC 500m reel

Description

Description

Standards

  • Product
    ANSI/TIA-568-C.2; EN 50173-1; IEC 61156-5
  • International
    ISO/IEC 11801

Application

Nexans U/UTP Category 5e cables are the standard 100MHz offering from Nexans. Manufactured in accordance with ISO IEC 61156-5 and TIA 568B requirements, this cable is the best choice to support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, … Cat 5e U/UTP cables are suitable for basic voice and data installations up to 100 MHz.

Performance

Nexans Category 5e cables are compliant with the requirements of EN 50288 and ISO IEC 61156-5 standards. Used with Cat 5e connectivity, these cables are compliant with Class D link requirements as described in EN 50173 Edition 2 and ISO 11801 Edition 2 standards (2002).

Features

  • 4 twisted pairs
  • Compact design for minimum volume in ducts or trails
  • Orange LSZH sheath
  • Single construction
  • Design for easy and quick installation
  • Solid 24 AWG cable
  • RoHS EC Directive 2002/95/EC compliant

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
UTP
Colour
Grey
Outer sheath
PVC
Screen
Unshielded

Dimensional characteristics

Dimensional characteristics

Approximate weight
30 kg/km
Conductor cross-section (AWG/KCMIL)
24
Conductor diameter
0.6 mm
Diameter over insulation
0.9 mm
Nominal outer diameter
4.9 mm

Electrical characteristics

Electrical characteristics

Characteristic impedance
100 Ohm

Transmission characteristics

Transmission characteristics

Nominal Velocity of Propagation (NVP)
68 %
Propagation delay, max. 100 MHz
536 ns/100m

Usage characteristics

Usage characteristics

Category
Cat. 5e
Component function
Cable
Ambient installation temperature, range
0 ... 50 °C
Electro magnetic interference resistance
No
Flame retardant
IEC 60332-1
Length
500 m
Minimum dynamic operating bending radius
20.0 mm
Minimum static operating bending radius
40 mm
Operating temperature, range
-20 ... 60 °C
Packaging
Reel
Range
Nexans Cat5e
