N2XS(F)H 6.35/11 kV B2ca
N2XS(F)H 6.35/11 kV B2ca
6.35/11 kV XLPE insulated single core cables with copper conductor and LSZH outer sheath with radial and longitudinal water blocking
Read moreN2XS(F)H 1X185/25 mm2
Nexans ref. 10574929 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 185 mm²
N2XS(F)H 1X240/25 mm2
Nexans ref. 10574930 - Country ref. TR
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
Description
Description
Standards
-
ProductIEC 60502-2
Application
These are cables with low dielectric losses used in energy network with sudden load changes. Laid in residental or industrial areas, underground or in ducts.

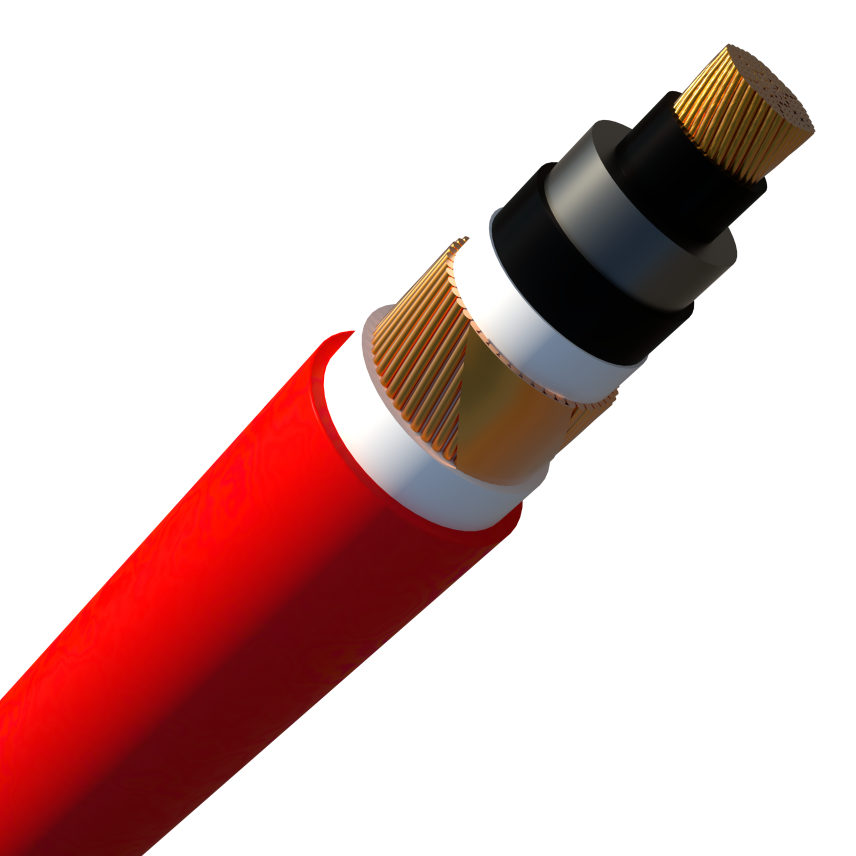

Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound (XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound (XLPE) + water swelling tape + copper wires with counter helix of copper tape
- Outer sheath: LSZH
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Stranded class 2
Halogen free
IEC 60754-1; IEC 60754-2
Longitudinally watertight
Yes
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
6.35 / 11 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-3 Cat. C
Max. conductor temperature in service
90 °C
Smoke density
IEC 61034-2
